Part no.: 43 1726 112 03

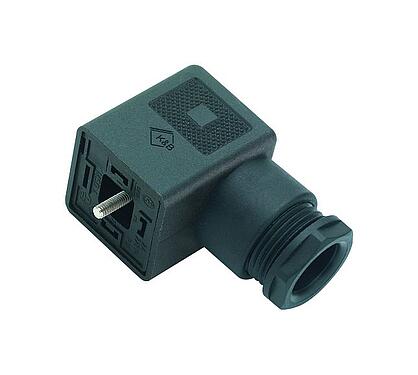

Female power connector, Contacts: 2+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 without seal, Circuit P10
Size A, series 210, Automation Technology - Solenoid Valve Connectors
3D View(Click to activate)
This female power connector with central bolt locking system and a pin count of 2+PE is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded type A Gerätesteckdose designed for both severe cold and severe heat and has the approval. Due to the qualified rated voltage of 230 V and the rated current of 2,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 175301-803.
General features
Moreless| Part no. | 43 1726 112 03 |
| Connector design | Female power connector |
| Type standard | DIN EN 175301-803 |
| Version | Connector socket straight |
| Connector locking system | Central bolt |
| Termination | screw clamp |
| Degree of protection |
IP40 without seal IP65 with seal, see accessories |
| Cross-sectional area | 0.34-1.50 mm² |
| Cable outlet | 8.0-10.0 mm |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 50 Mating cycles |
| Additional information | Circuit P10 |
| Weight (g) | 29.53 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 230 V |
| Rated impulse voltage | 800 V |
| Rated current | 2.0 A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |

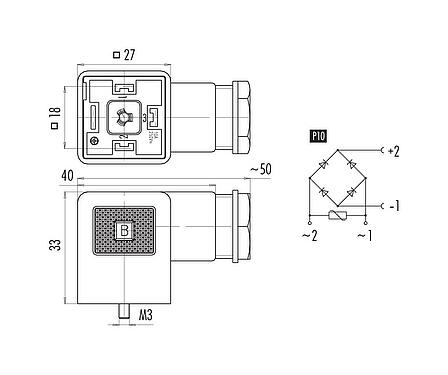

| Wiring | P10 |
Material
Moreless| Housing material | PA |
| Contact body material | PA (UL94 HB) |
| Contact material | CuSn (bronze) |
| Contact plating | Ni (nickel) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 3703b084-2a20-4b51-964f-943c58000811 |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002635 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
