Automation technology - Voltage and Power Supply
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Coding
The connector elements, pin and socket, must be brought into form-fitting alignment with one another (coding) before locking. This prevents mismating.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.

The M12 L-coded connector represents a significant advancement in the realm of industrial connectivity, specifically designed to meet the growing demands for robust and high-performance solutions. As a variant of the widely adopted M12 standard, the M12 L-coded connector stands out for its distinctive features and capabilities. Also referred to as L-coded M12 connectors, these components play a crucial role in delivering reliable power and data connections in industrial settings. The M12 L-code PROFINET variant has gained prominence for its compatibility with the PROFINET industrial Ethernet standard, making it a preferred choice for applications requiring fast and secure data transmission. Additionally, the M12 L-code overmolded connectors extend the M12-L product line and provide durability and ingress protection in challenging environmental conditions.


L-coded M12 connector


One of the noteworthy aspects of the M12 L-coded connector is its application in power distribution. The M12 power DC connector variant provides a robust solution for delivering power in industrial automation systems. With its standardized design, the M12 L-coded connector ensures interchangeability and ease of integration across various devices and equipment.


M12 L-coded

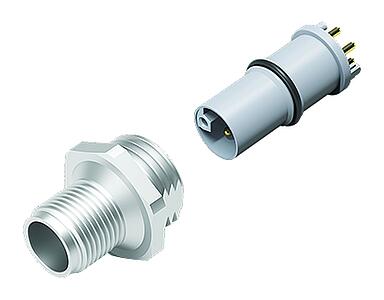

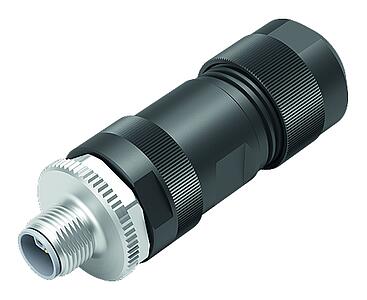

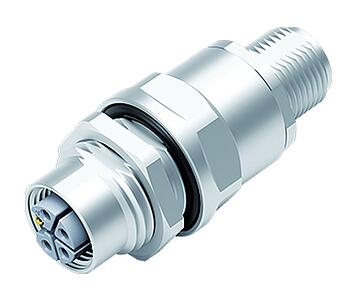

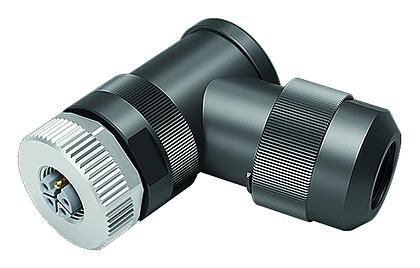

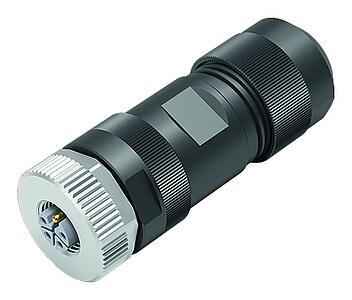

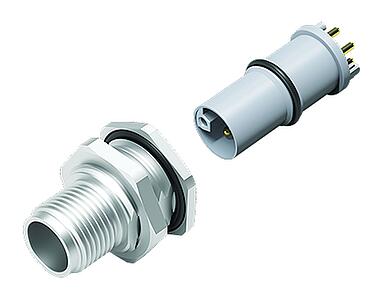

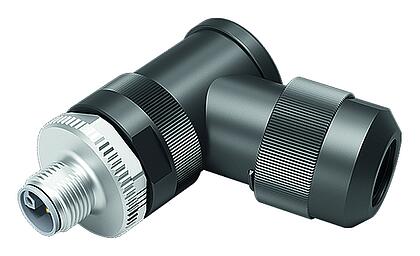

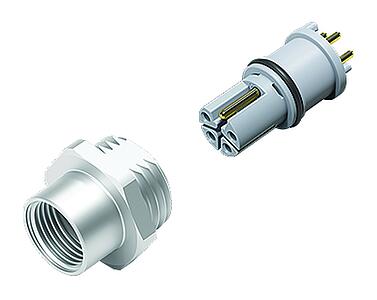

The 823 series with screw locking according to DIN EN 61076-2-111 are L-coded for DC applications. L-coded versions have 4+FE contacts with a rated current of 12A/ 16A at 63VDC. The straight and angled cable connectors have screw terminal connection. Flanged connectors are available with dip solder terminals as well as with stranded wires.


Find your suitable M12-L connector from binder:
