Automation technology - Voltage and Power Supply
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.
Show products
  1. Products
  2. Automation technology - Voltage and Power Supply
  3. M18

M18 connector - Automation

Series PDF (524 KB)

Our M12 circular connectors with screw locking of the 714 series have 4 contacts with a rated current of 16 A at 250 V and comply with protection class IP67. They are available as straight and angled cable connectors with screw clamp connection as well as flange versions with solder and dip solder connections.

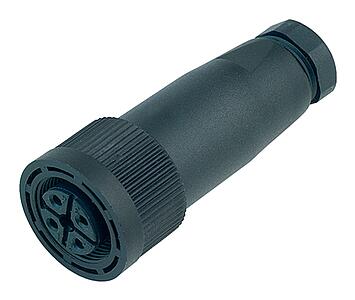

Automation Technology - Voltage and Power Supply--Female cable connector_714_2_G2
09 0440 10 04
M18 Female cable connector, Contacts: 4, 6.5-8.0 mm, unshielded, screw clamp, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_714_2_G2
09 0440 010 04
M18 Female cable connector, Contacts: 4, 6.5-8.0 mm, unshielded, screw clamp, IP67, UL
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_714_2_G2
99 0440 16 04
M18 Female cable connector, Contacts: 4, 10.0-12.0 mm, unshielded, screw clamp, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_714_2_G2
99 0440 016 04
M18 Female cable connector, Contacts: 4, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL
M18, series 714, Automation Technology - Voltage and Power Supply
Details

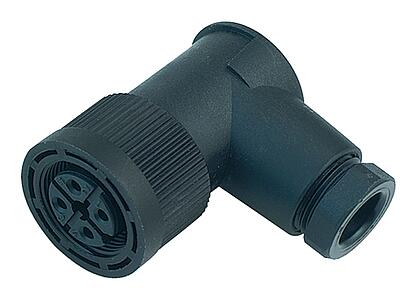

Automation Technology - Voltage and Power Supply--Female angled connector_714_2_W
09 0440 00 04
M18 Female angled connector, Contacts: 4, 6.5-8.0 mm, unshielded, screw clamp, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female angled connector_714_2_W
09 0440 000 04
M18 Female angled connector, Contacts: 4, 6.5-8.0 mm, unshielded, screw clamp, IP67, UL
M18, series 714, Automation Technology - Voltage and Power Supply
Details

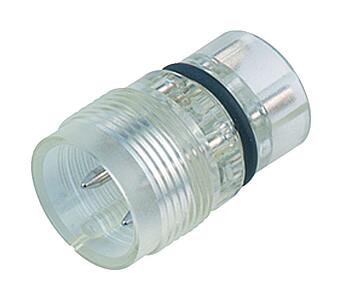

Automation Technology - Voltage and Power Supply--Male receptacle_714_3
09 0441 00 04
M18 Male receptacle, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Male receptacle_714_3
09 0441 50 04
M18 Male receptacle, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details

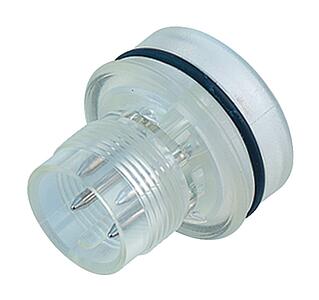

Automation Technology - Voltage and Power Supply--Adapter connector_714_3_30
09 0443 00 04
M18 Adapter connector, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Adapter connector_714_3_30
09 0443 50 04
M18 Adapter connector, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details

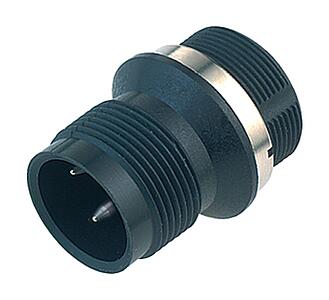

Automation Technology - Voltage and Power Supply--Male receptacle_714_3_R
09 0441 81 04
M18 Male panel mount connector, Contacts: 4, unshielded, solder, IP67
M18, series 714, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Male receptacle_714_3_R
09 0441 081 04
M18 Male panel mount connector, Contacts: 4, unshielded, solder, IP67, UL
M18, series 714, Automation Technology - Voltage and Power Supply
Details
