Name: Model A
Brand: binder
SKU: 31 5235 500 000

Illustration 31 5235 500 000 - Female solenoid valve connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m — Illustration

3D View 31 5235 500 000 - Female solenoid valve connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m — 3D View

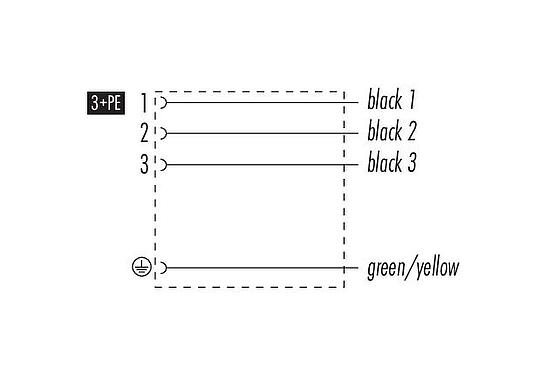

Pin assignment plans 31 5235 500 000 - Female solenoid valve connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m — Pin assignment plans

Scale drawing 31 5235 500 000 - Female solenoid valve connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m — Scale drawing

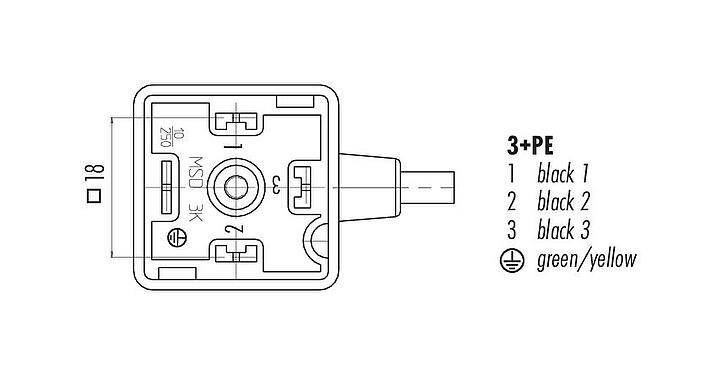

Contact arrangement (Plug-in side) 31 5235 500 000 - Female solenoid valve connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PUR, black, 5 m — Contact arrangement (Plug-in side)

This female solenoid valve connector with central screw locking and a pin count of 3+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded type A female solenoid valve connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 230 V and the rated current of 10,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 175301-803.

Moreless

Part no.	31 5235 500 000 Alternative part no.: 31 1314 500 000
Notice	Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. More
Connector design	Female solenoid valve connector
Type standard	DIN EN 175301-803
Cable length	5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Solenoid valve connector
Connector locking system	Central bolt
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.75 mm² / AWG 18
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	370.00
Customs tariff number	85444290
Country of Origin	CZ

Moreless

Rated voltage	230 V
Rated impulse voltage	4000 V
Rated current	10.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	I
EMC compliance	unshielded

Moreless

Housing material	PBT
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Sn (tin)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

Moreless

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Moreless

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Moreless

Structure of the cable
Cable diameter	6.0 mm
Sheath material	PUR
Single-lead structure	4 x 0.75 mm
Cable color	black
Other features
Halogen free	yes

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
