Name: Snap-in IP40
Brand: binder
SKU: 09 9750 30 03

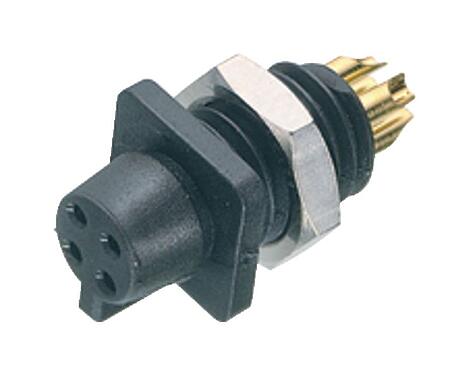

Illustration 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Illustration

3D View 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — 3D View

Conductor layout 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Conductor layout

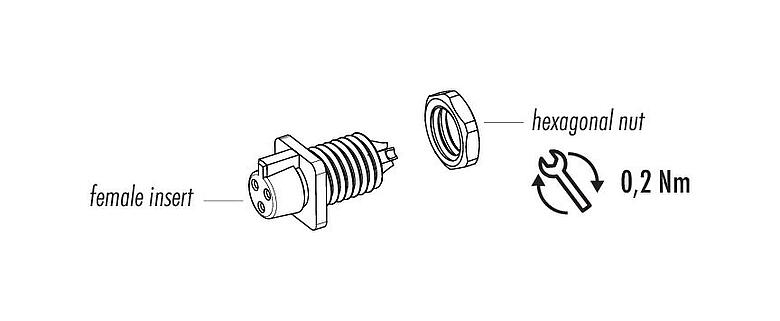

Component part drawing 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Component part drawing

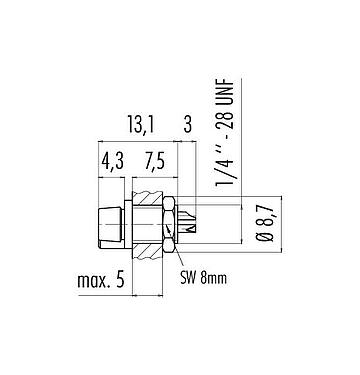

Scale drawing 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Scale drawing

Assembly instructions / Panel cut-out 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 9750 30 03 - Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40 — Contact arrangement (Plug-in side)

This female panel mount connector with snap-in locking system and a pin count of 3 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -25 °C/70 °C is this unshieldede Snap-In IP40 female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 3,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	09 9750 30 03
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	snap-in
Termination	solder
Degree of protection	IP40
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	1.20
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Moreless

Housing material	PA
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	0c2cba33-6f85-4d7c-92d7-28bd9dd550ed

Moreless

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
