Name: Bayonet NCC
Brand: binder
SKU: 09 0762 000 05

Illustration 09 0762 000 05 - Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged — Illustration

3D View 09 0762 000 05 - Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged — 3D View

Component part drawing 09 0762 000 05 - Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged — Component part drawing

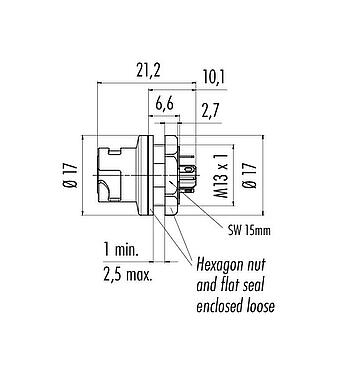

Scale drawing 09 0762 000 05 - Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged — Scale drawing

Assembly instructions / Panel cut-out 09 0762 000 05 - Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged — Assembly instructions / Panel cut-out

This female panel mount connector with bayonet locking system and a pin count of 5 is according to its protection class IP54 ungesteckt Geschützt gegen Staub in schädigenThis Menge. Vollständiger Schutz gegen Berührung. Schutz gegen allseitiges Spritzwasser. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded bayonet NCC female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 50 V and the rated current of 2,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	09 0762 000 05
Connector design	Female panel mount connector
Version	Connector pin straight
Connector locking system	Bayonet
Termination	solder
Degree of protection	IP54 unplugged IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 1000 Mating cycles
Weight (g)	3.85
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	50 V
Rated impulse voltage	500 V
Rated current	2.0 A
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Moreless

Housing material	PA
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	05251b99-7715-40aa-a9a5-24ebea3a0516

Moreless

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
