Part no.: 08 3080 000 001
Contacts: 3 wires, unshielded, PUR, black (RAL 9005), 3 x 0.34 mm², variable length
PUR cable, series 769
General features
MorelessPart no. |
08 3080 000 001
Alternative part no.: 52 0537 000
|
Cable length | variable length |
Version | Cable |
Weight (g) | 0.00 |
Electrical parameters
MorelessEMC compliance | unshielded |
Material
MorelessREACH SVHC |
None (No pollutants) |
SCIP number | SCIP-number not available |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-90 |
ETIM 9.0 | EC002638 |
Cable data

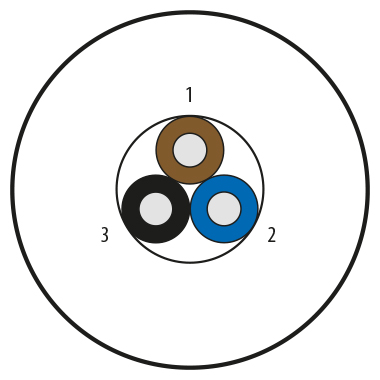

MorelessStructure of the cable | |
Cable diameter | 4.3 mm |
Cross section | 3 x 0.34 mm² |
Sheath material | PUR |
Single-lead insulation | PP9Y halogen-free |
Single-lead structure | 43 x 0.10 mm |
Cable color | black (RAL 9005) |
Electrical properties | |
Cable Insulation resistance | > 1000 MΩxKm |
Operating voltage | ≤ 300 V |
Cable test voltage | ≥ 2500 V effective |
Conductor resistance | 60 Ω/Km (20°C) |
Mechanical properties | |
Bending radius, fixed cable | ≥ 5 x Ø |
Bending radius, moving cable | ≥ 10 x Ø |
Bending cycles | > 5 million |
Permitted acceleration | </= 5 m/s² |
Travel distance, horizontal | </= 5 m |
Travel distance, vertical | </= 5 m |
Travel speed | ≤ 200 m/min |
Thermal properties | |
Temperature range cable in move from/to | -25 °C / 90 °C (UL +80 °C) |
Temperature range cable fixed from/to | -50 °C / 90 °C (UL +80 °C) |
Other features | |
Halogen free | yes |
