Part no.: 08 3393 000 001
Contacts: 8 wires, shielded, PVC, grey (RAL 7000), 8 x 0.25 mm², variable length
PVC cable, Cable
General features
Moreless| Part no. |
08 3393 000 001
Alternative part no.: 52 0609 000
|
| Cable length | variable length |
| Version | Cable |
| Weight (g) | 0.00 |
Electrical parameters
Moreless| EMC compliance | shielded |
Material
Moreless| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data

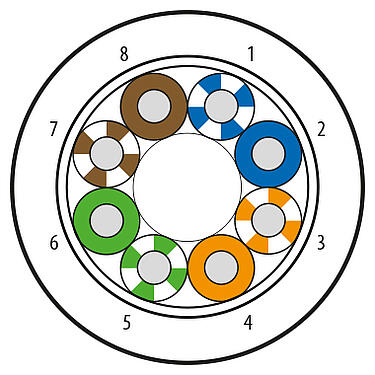

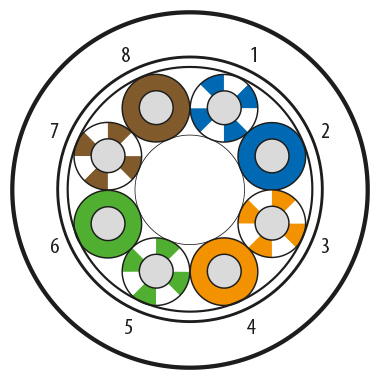

Moreless| Structure of the cable | |
| Cable diameter | 6.8 mm |
| Cross section | 8 x 0.25 mm² |
| Sheath material | PVC |
| Cable color | grey (RAL 7000) |
| Electrical properties | |
| Operating voltage | 300 V |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 2 m |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 80 °C |
| Temperature range cable fixed from/to | -25 °C / 80 °C |
