Name: RD24 Power
Brand: binder
SKU: 79 0236 070 07

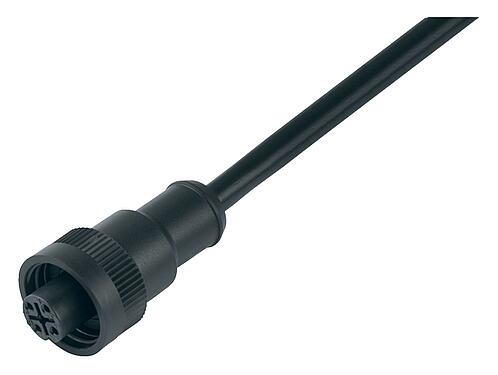

Illustration 79 0236 070 07 - RD24 Female cable connector, Contacts: 6+PE, unshielded, moulded on the cable, IP67, PVC, black, 7 x 0.75 mm², 7 m — Illustration

3D View 79 0236 070 07 - RD24 Female cable connector, Contacts: 6+PE, unshielded, moulded on the cable, IP67, PVC, black, 7 x 0.75 mm², 7 m — 3D View

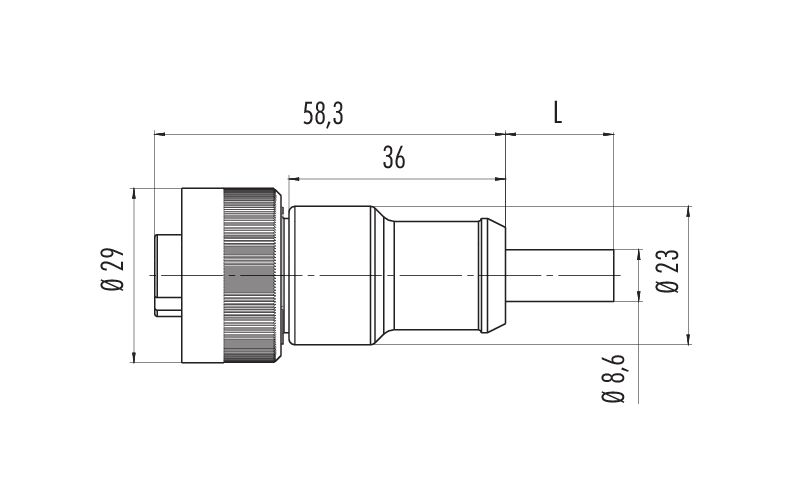

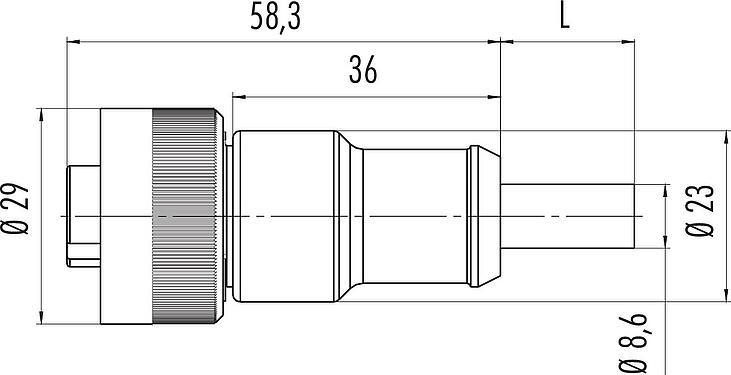

Scale drawing 79 0236 070 07 - RD24 Female cable connector, Contacts: 6+PE, unshielded, moulded on the cable, IP67, PVC, black, 7 x 0.75 mm², 7 m — Scale drawing

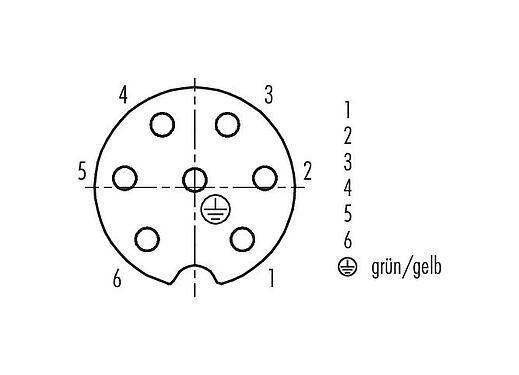

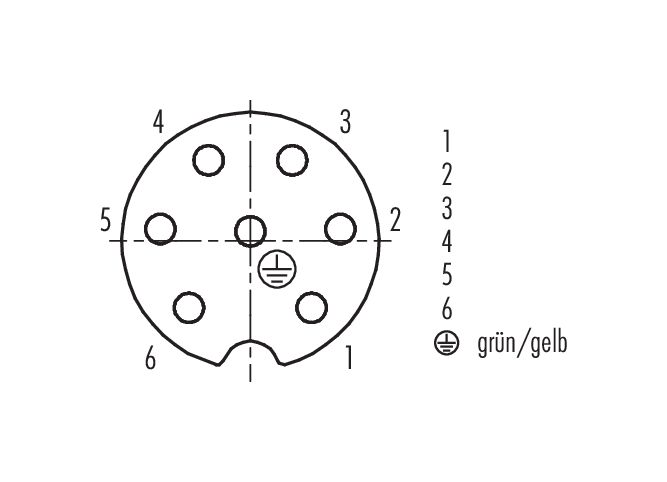

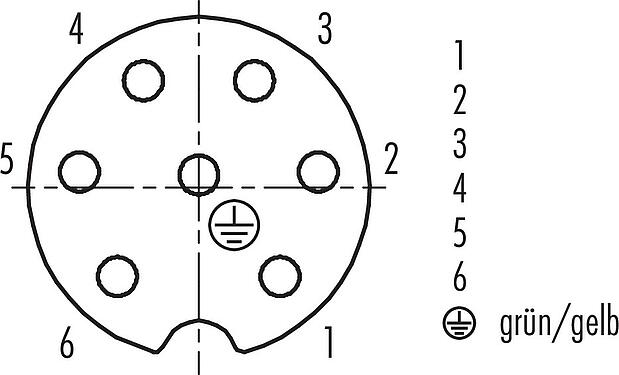

Contact arrangement (Plug-in side) 79 0236 070 07 - RD24 Female cable connector, Contacts: 6+PE, unshielded, moulded on the cable, IP67, PVC, black, 7 x 0.75 mm², 7 m — Contact arrangement (Plug-in side)

This female cable connector with screw locking and a pin count of 6+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded RD24 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 8,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	79 0236 070 07
Connector design	Female cable connector
Cable length	7 m (Other lengths are available on request).
Version	Connector socket straight
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.75 mm² / AWG 18
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	974.00
Customs tariff number	85444290
Country of Origin	DE

Moreless

Rated voltage	250 V
Rated impulse voltage	4000 V
Rated current	8.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	III
EMC compliance	unshielded

Moreless

Contact body material	PA12
Contact material	CuZn (brass)
Contact plating	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	15f152c3-8dcf-4dee-a06b-2c121541bc0f

Moreless

eCl@ss 11.1	27-06-03-11
ETIM 9.0	EC002638

Moreless

Structure of the cable
Cross section	7 x 0.75 mm²
Sheath material	PVC
Single-lead insulation	PVC
Single-lead structure	24 x 0.20 mm
Cable color	black
Thermal properties
Temperature range cable in move from/to	-5 °C / 80 °C
Temperature range cable fixed from/to	-20 °C / 80 °C
Other features
Halogen free	no

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
