RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE

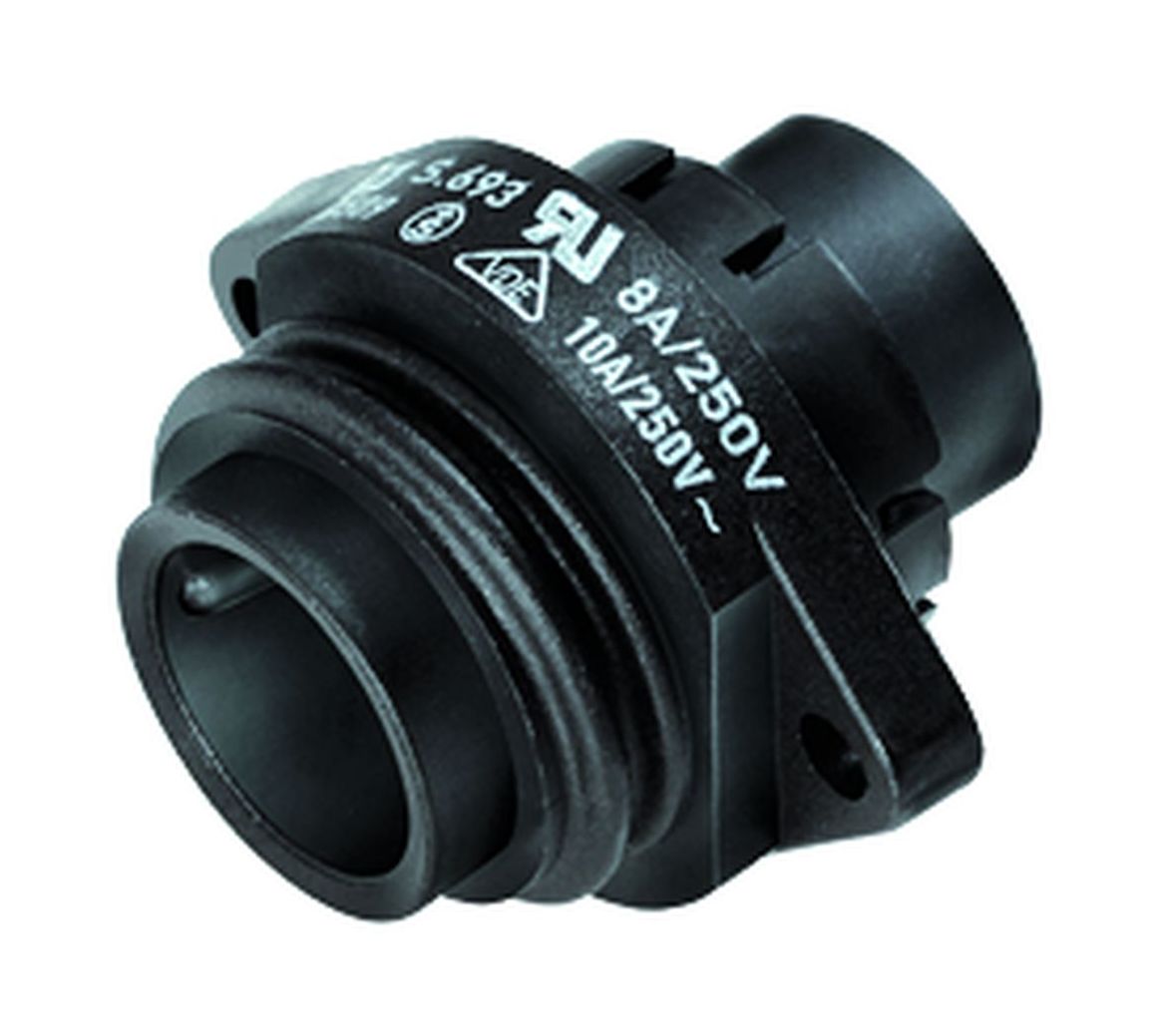

Illustration 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — Illustration

3D View 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — 3D View

Conductor layout 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — Conductor layout

Scale drawing 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — Scale drawing

Assembly instructions / Panel cut-out 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 4203 00 07 - RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE — Contact arrangement (Plug-in side)

Part no.	09 4203 00 07
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	screw
Termination	crimping (Crimp contacts must be ordered separately)
Degree of protection	IP67
Cross-sectional area	0.14-1.50 mm² / AWG 26-16
Temperature range from/to	-40 °C / 100 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	12.32
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	250 V
Rated impulse voltage	4000 V
Rated current	10 A (8 A UL)
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PBT
Contact material	depending on crimp contact (accessory)
Contact plating	Ag (silver)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

Approvals	UL, ESTI+, VDE

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
