Part no.: 09 6111 150 06

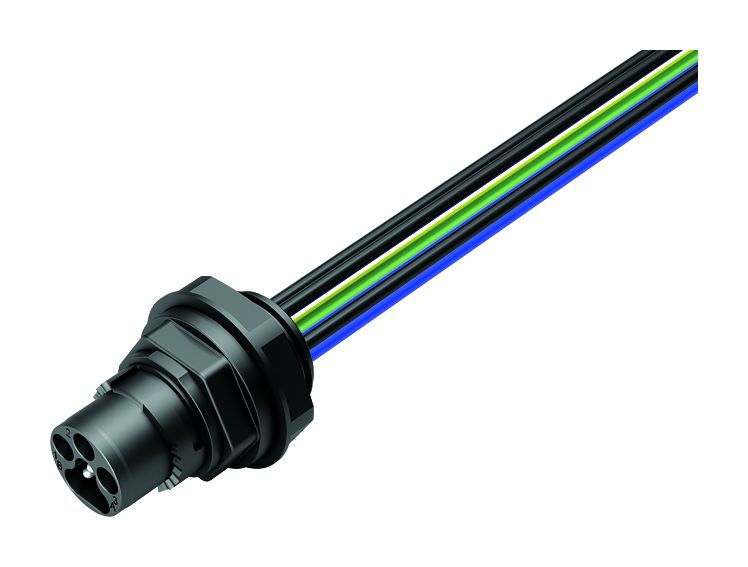

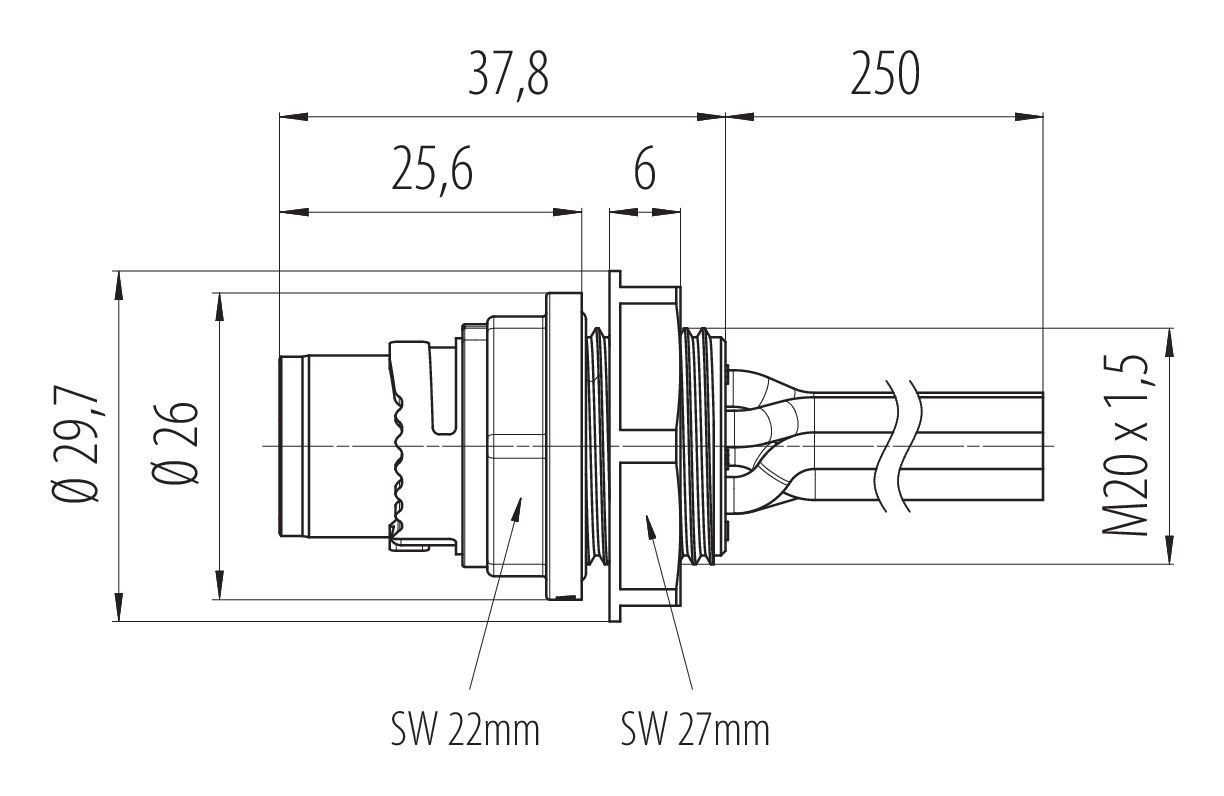

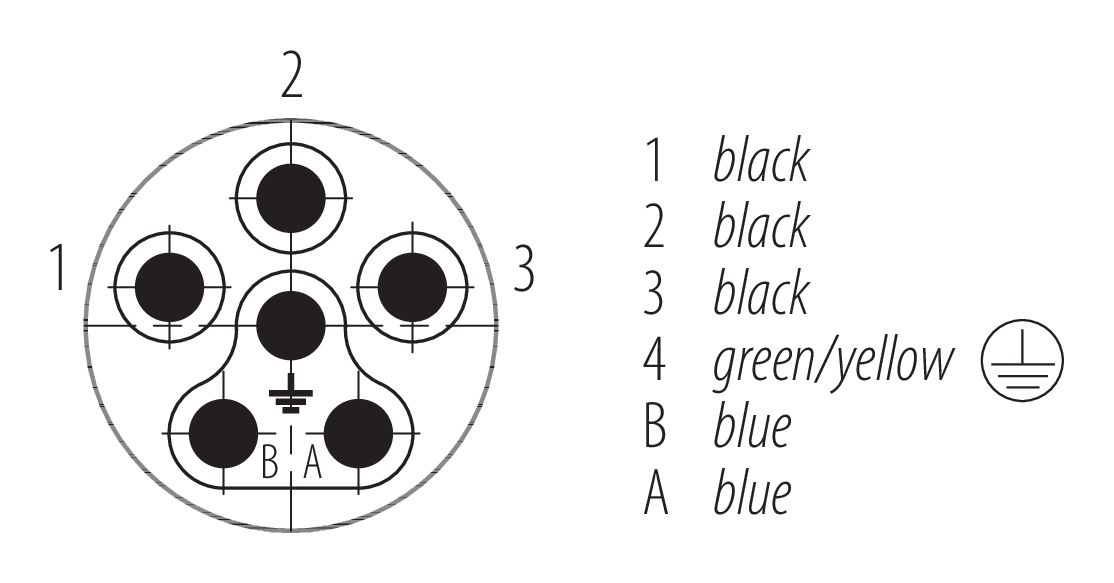

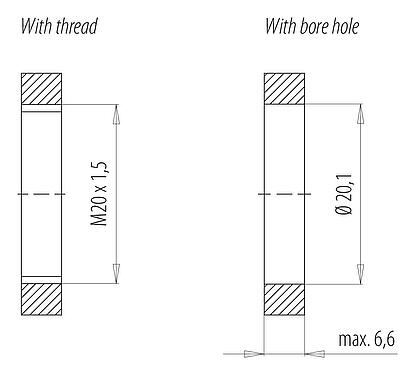

Bayonet Male panel mount connector, Contacts: 6 (3+PE+2), not shielded, single wires, IP66/IP67, UL, M20x1.5
PBC15, series 615, Power Connectors
General features
Moreless| Part no. | 09 6111 150 06 |
| Connector design | Male panel mount connector |
| Wire length | 0.15 m |
| Version | Panel mount Connectors |
| Connector locking system | Bayonet |
| Termination | single wires |
| Degree of protection | IP66/IP67 |
| Cross-sectional area | 1.50 mm² / AWG 16 |
| Temperature range from/to | -25 °C / 90 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 0.00 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | Power: 600 V, Signal: 63 V |
| Rated impulse voltage | Power: 6000 V, Signal: 1500 V |
| Rated current | Power: 16 A, Signal: 10A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | not shielded |
Material
Moreless| Housing material | PA (UL94 HB) |
| Contact body material | PA |
| Contact material | Copper alloy |
| Contact plating | Ag (silver) |
| Material seal | NBR |
| SCIP number | SCIP-number not available |
Authorization/approvals
Moreless| Approvals | UL |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
