Part no.: 09 0447 00 12

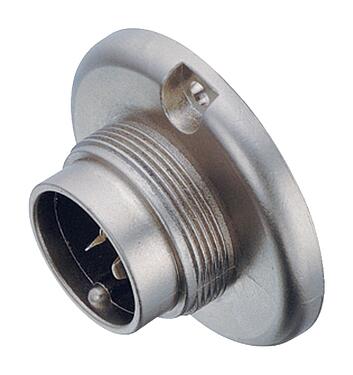

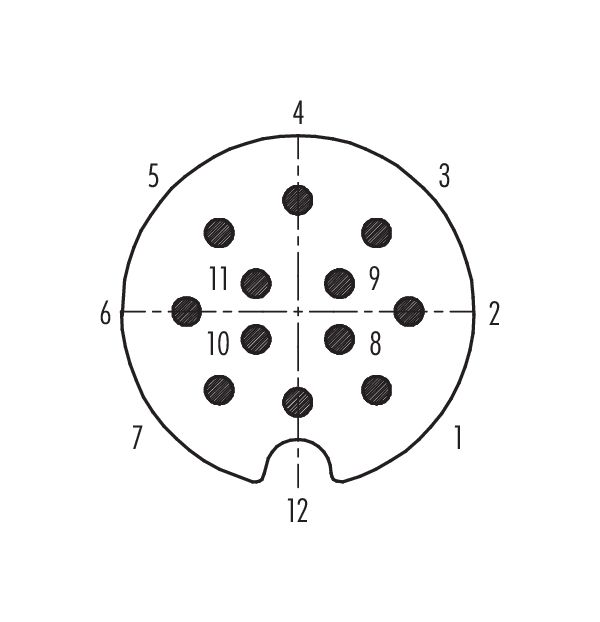

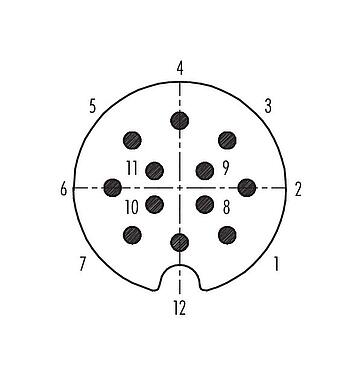

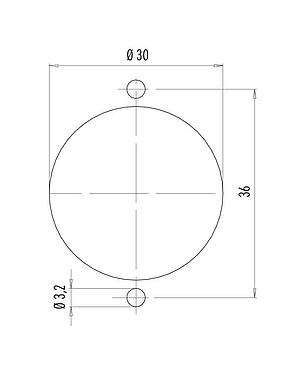

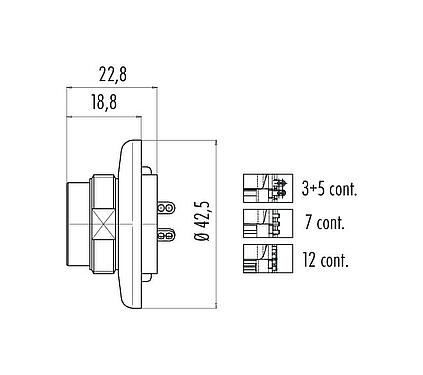

M25 Male panel mount connector, Contacts: 12, shieldable, solder, IP40
M25, series 691, Power Connectors
3D View(Click to activate)
This male panel mount connector with screw locking and a pin count of 12 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this shieldable M25 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 5,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 09 0447 00 12 |
| Connector design | Male panel mount connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 47.14 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 125 V |
| Rated impulse voltage | 1500 V |
| Rated current | 5.0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Shield on the housing |
Material
Moreless| Housing material | GD-AL eloxiert |
| Contact body material | PET (UL94 V-0) |
| Contact material | CuZn (brass) |
| Contact plating | CuSnZn (Optalloy) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | c15c5316-b16b-482a-bf3b-81bbdc764ca8 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.25 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
