Name: Bayonet HEC Power
Brand: binder
SKU: 99 6517 100 12

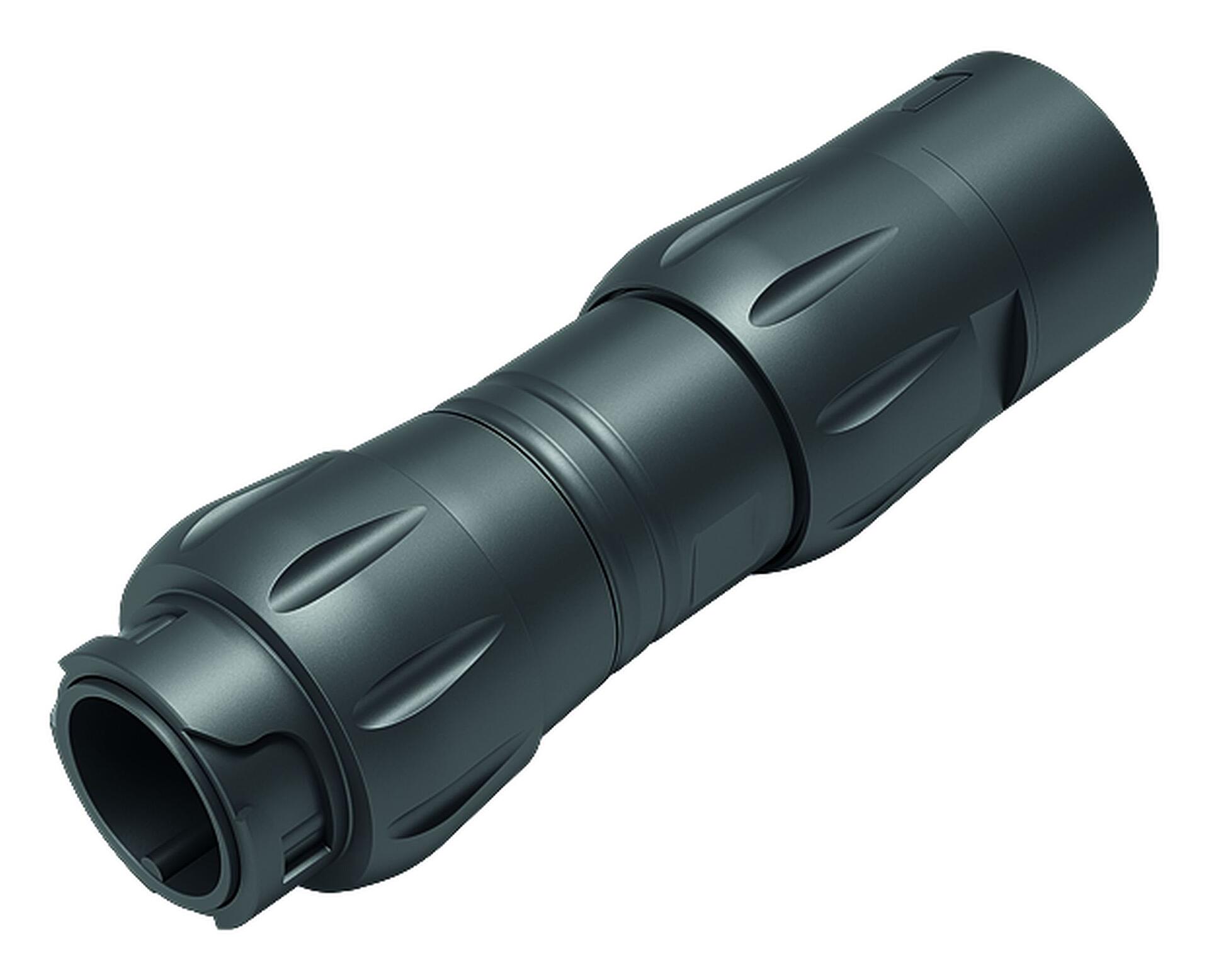

Illustration 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — Illustration

3D View 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — 3D View

Component part drawing 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — Component part drawing

Scale drawing 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — Scale drawing

Assembly instructions 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — Assembly instructions

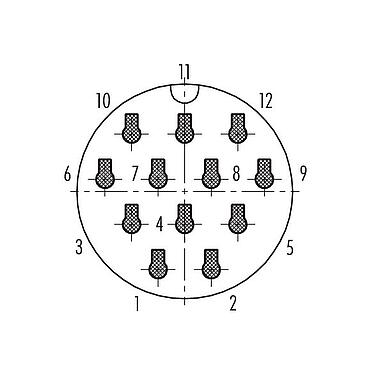

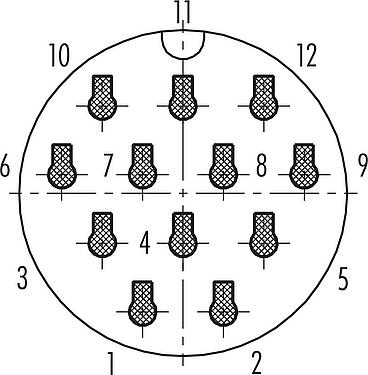

Contact arrangement (Plug-in side) 99 6517 100 12 - Bayonet Male cable connector, Contacts: 12, 7.0-13.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE — Contact arrangement (Plug-in side)

This male cable connector with bayonet locking system and a pin count of 12 is according to its protection class IP68/IP69K Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/100 °C is this unshielded bayonet HEC male cable connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 250 V and the rated current of 5,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	99 6517 100 12
Connector design	Male cable connector
Version	Connector pin straight
Connector locking system	Bayonet
Termination	crimping (Crimp contacts must be ordered separately)
Degree of protection	IP68/IP69K
Cross-sectional area	0.14-0.75 mm² / AWG 26-18
Cable outlet	7.0-13.0 mm
Temperature range from/to	-40 °C / 100 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	71.98
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	250 V
Rated impulse voltage	4000 V
Rated current	5.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	I
EMC compliance	unshielded

Moreless

Housing material	PA
Contact body material	PA
Contact material	depending on crimp contact (accessory)
REACH SVHC	None (No pollutants)
SCIP number	SCIP-number not available

Moreless

Approvals	UL, VDE

Moreless

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Moreless

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
