Part no.: 09 6520 200 12

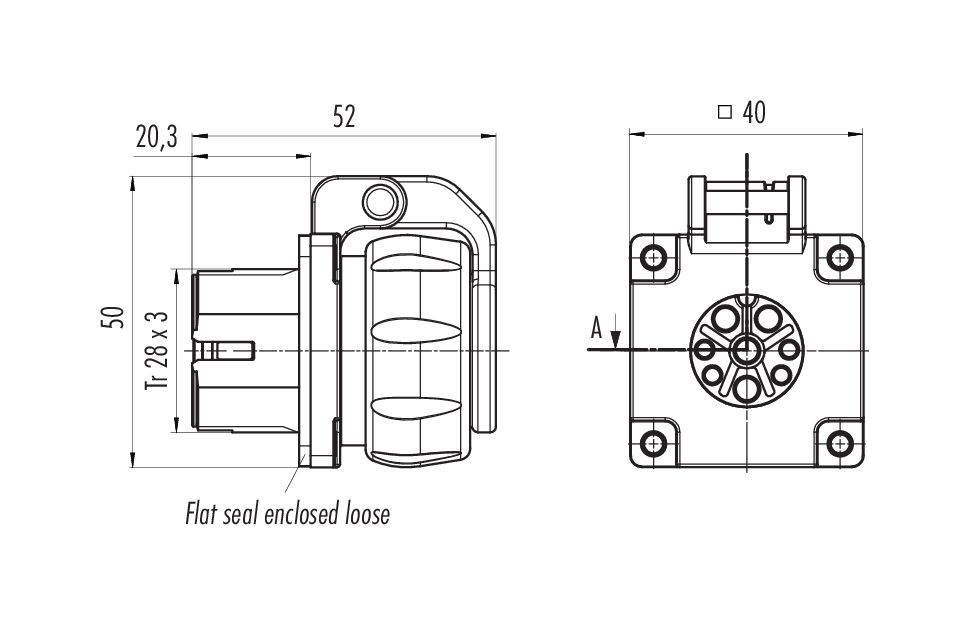

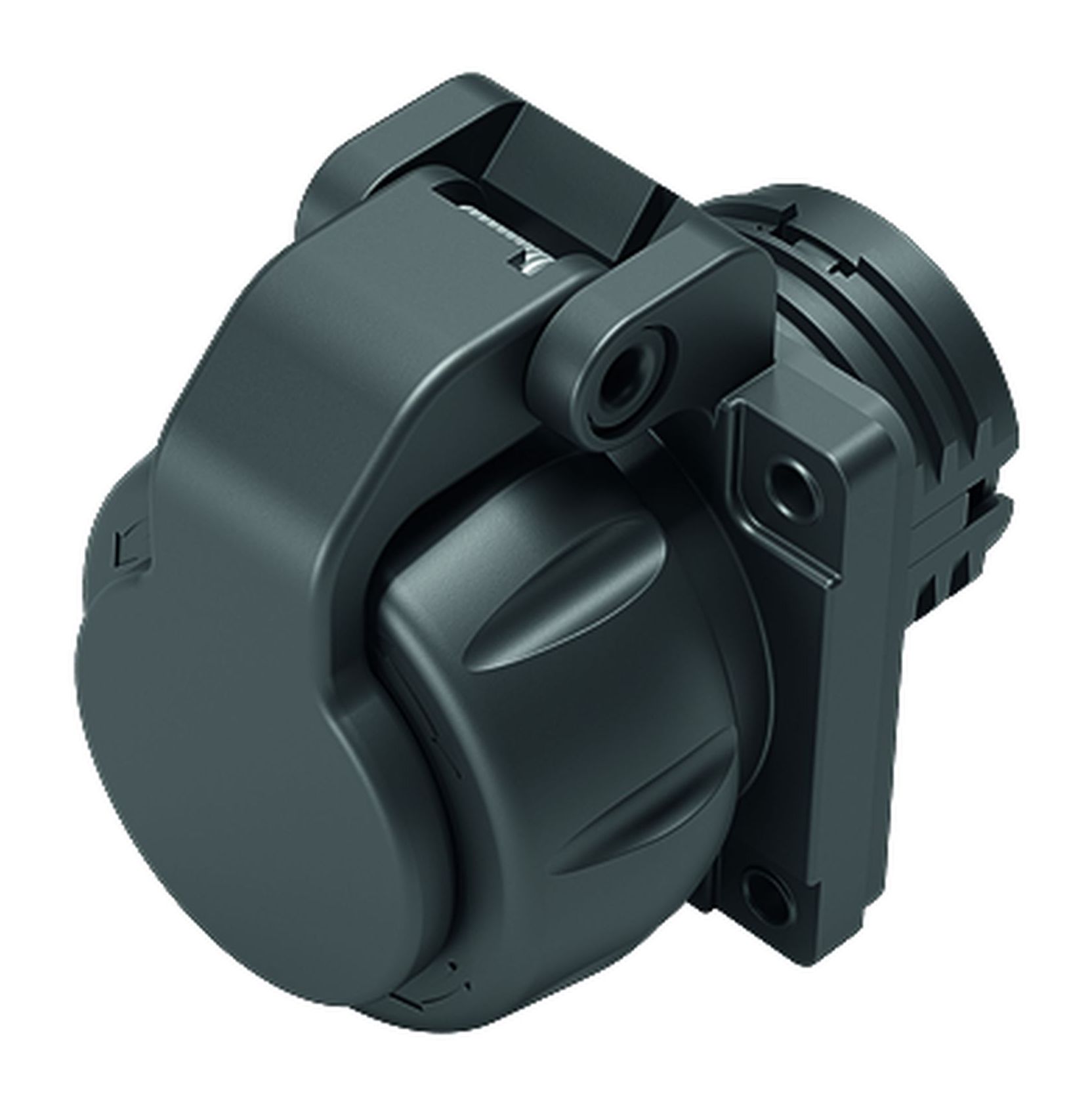

Bayonet Female panel mount connector, Contacts: 12, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE
Bayonet HEC, series 696, Power Connectors
3D View(Click to activate)
This female panel mount connector with bayonet locking system and a pin count of 12 is according to its protection class IP68/IP69K Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/100 °C is this unshielded bayonet HEC female panel mount connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 250 V and the rated current of 5,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 09 6520 200 12 |
| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | Bayonet |

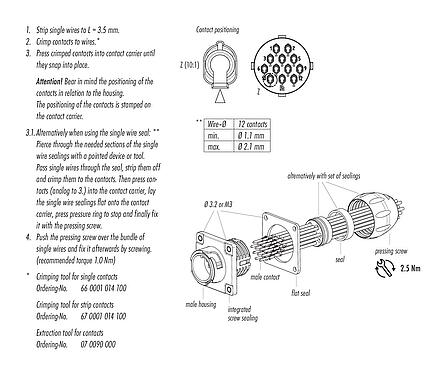

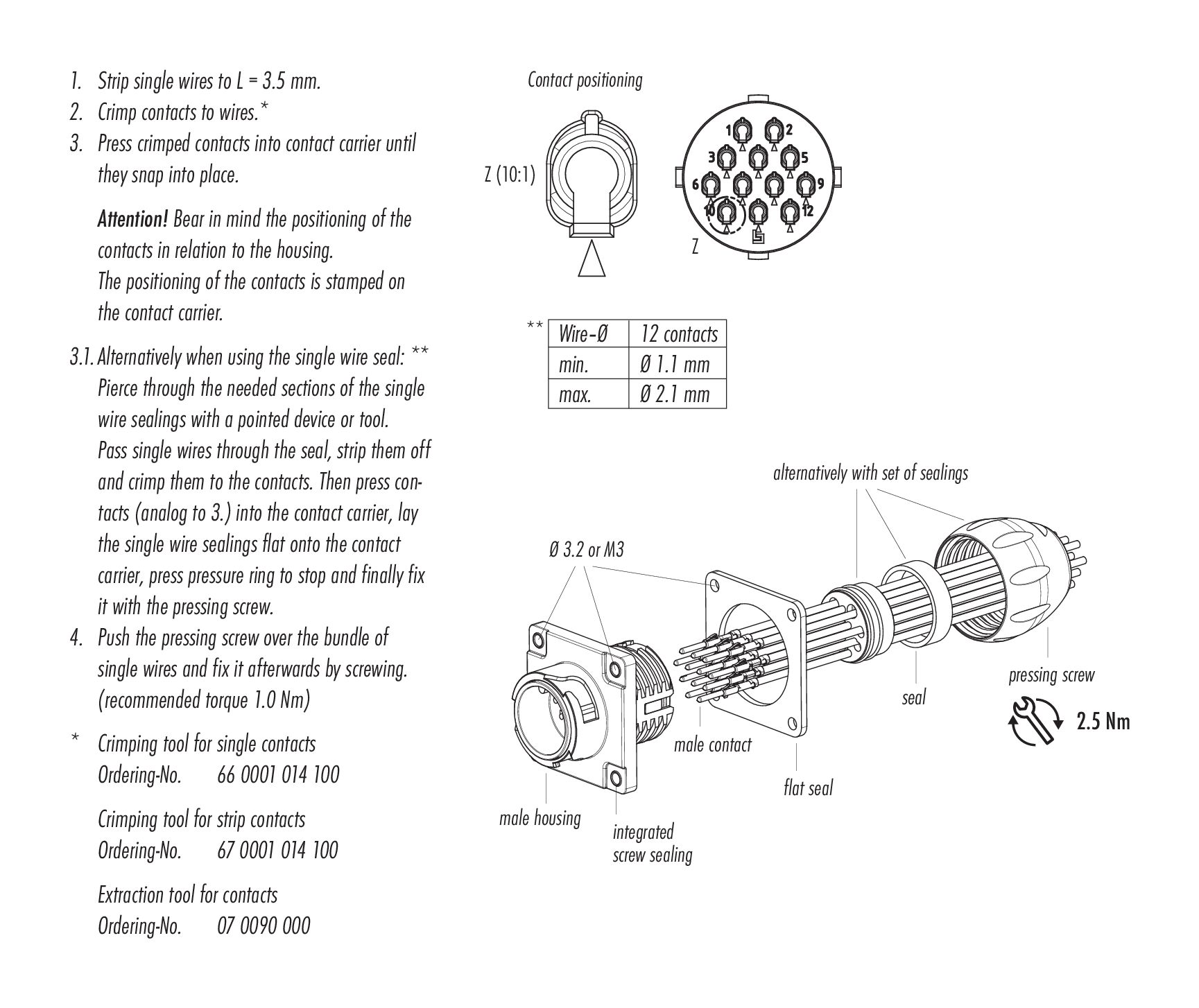

| Termination | crimping (Crimp contacts must be ordered separately) |
| Degree of protection | IP68/IP69K |
| Cross-sectional area | 0.14-0.75 mm² / AWG 26-18 |
| Temperature range from/to | -40 °C / 100 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 53.21 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 250 V |
| Rated impulse voltage | 4000 V |
| Rated current | 5.0 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PA |
| Contact plating | depending on crimp contact (accessory) |
| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Authorization/approvals
Moreless| Approvals | UL, VDE |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
