Part no.: 09 6504 000 08

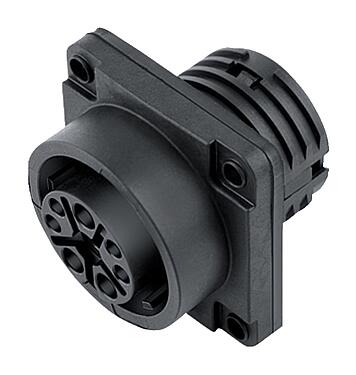

Bayonet Female panel mount connector, Contacts: 4+3+PE, unshielded, crimping (Crimp contacts must be ordered separately), IP68/IP69K, UL, VDE
Bayonet HEC, series 696, Power Connectors
3D View(Click to activate)
General features
Moreless| Part no. | 09 6504 000 08 |
| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | Bayonet |
| Termination | crimping (Crimp contacts must be ordered separately) |
| Degree of protection | IP68/IP69K |
| Cross-sectional area | 0.14-2.50 mm² / AWG 26-14 |
| Temperature range from/to | -40 °C / 100 °C |
| Mechanical operation | > 1000 Mating cycles |
| Weight (g) | 29.50 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | Power: 400 V, Signal: 60 V |
| Rated impulse voltage | 1000 V |
| Rated current | 3 A Signal / 25 A Power (20 A UL) |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PA |
| Contact material | depending on crimp contact (accessory) |
| Contact plating | depending on crimp contact (accessory) |
| Locking material | PA |
| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Authorization/approvals
Moreless| Approvals | UL, VDE |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
