  4. M16 Male panel mount connector, Contacts: 6 (06-a), unshielded, single wires, IP67, UL
Part no.: 09 0123 702 06

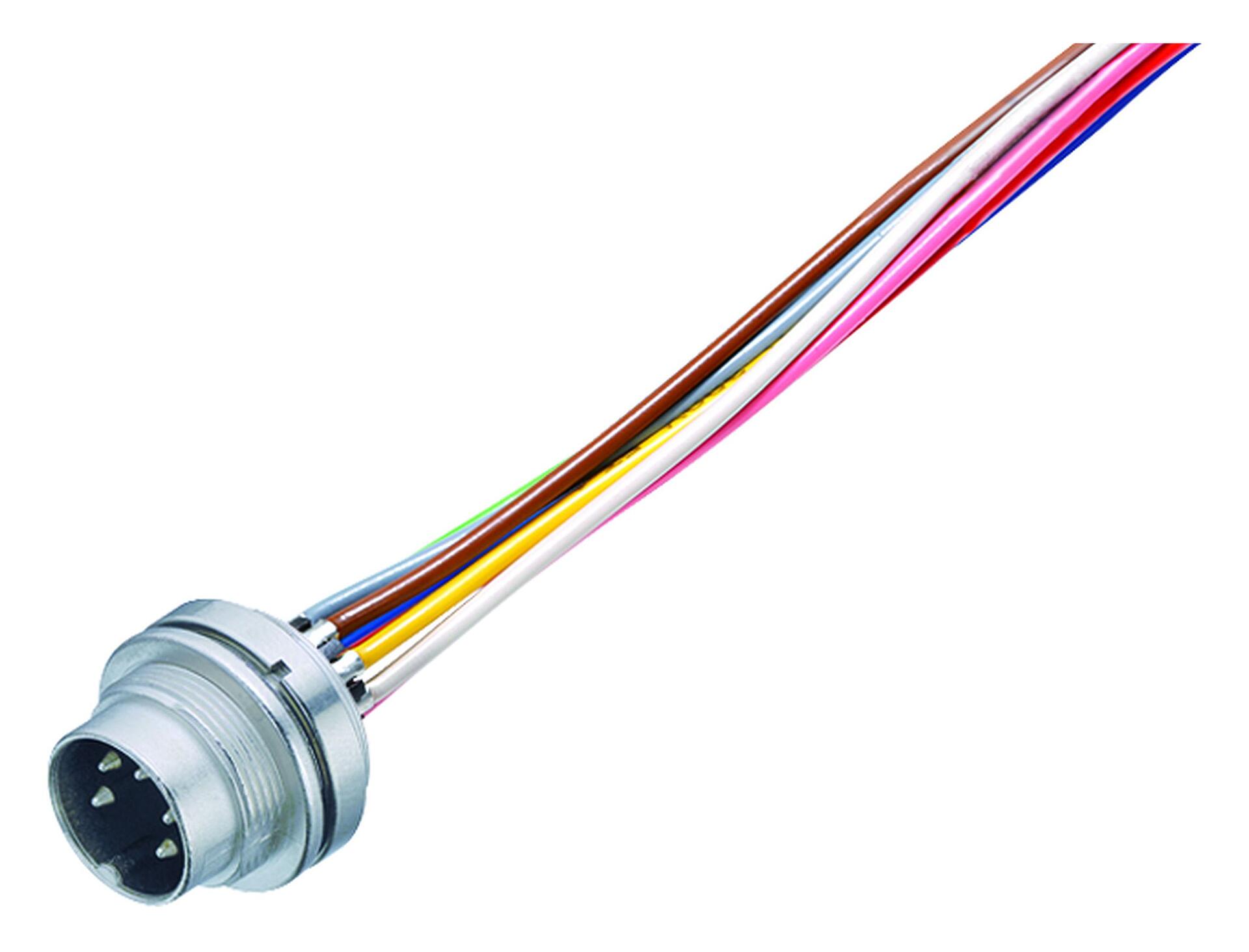

M16 Male panel mount connector, Contacts: 6 (06-a), unshielded, single wires, IP67, UL

M16 IP67, series 723, Miniature Connectors
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 6 (06-a) is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -30 °C/85 °C is this unshielded M16 IP67 male panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 300 V and the rated current of 5,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-106.
General features
Moreless
Part no. 09 0123 702 06
Connector design Male panel mount connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP67
Cross-sectional area AWG 22
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 18.64
Customs tariff number 85369010
Country of Origin DE
Rated voltage 300 V
Rated impulse voltage 1500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 8286468c-1eb0-474d-adc5-9e073fd0331a
ETIM 9.0 EC003569
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  6. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
