Part no.: 09 0120 80 05

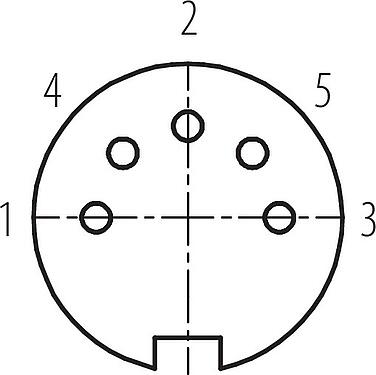

M16 Female panel mount connector, Contacts: 5 (05-b), unshielded, solder, IP67, UL, front fastened
M16 IP67, series 723, Miniature Connectors
General features
MorelessPart no. | 09 0120 80 05 |
Connector design | Female panel mount connector |
Type standard | DIN EN 61076-2-106 |
Version | Connector socket straight |
Connector locking system | screw |
Termination | solder |
Degree of protection | IP67 |
Cross-sectional area | 0.75 mm² / AWG 18 |
Temperature range from/to | -40 °C / 95 °C |
Mechanical operation | > 500 Mating cycles |
Weight (g) | 8.34 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 60 V |
Rated impulse voltage | 500 V |
Rated current | 6.0 A |
Insulation resistance | ≥ 1010 Ω |
Pollution degree | 1 |
Overvoltage category | I |
Insulating material group | III |
EMC compliance | unshielded |
Material
MorelessHousing material | Zinc die-cast nickel-plated |
Contact body material | PBT (UL94 V-0) |
Contact material | CuSn (bronze) |
Contact plating | Ag (silver) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | ecdeff87-2aeb-46ab-9d75-c1a9f4afc2b0 |
Authorization/approvals
MorelessApprovals | UL |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
