Part no.: 99 0773 000 08

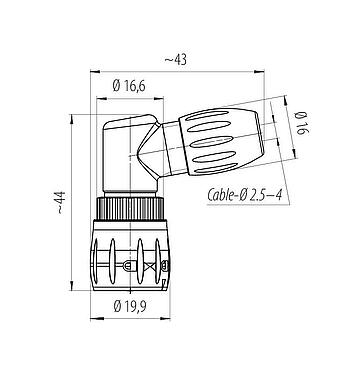

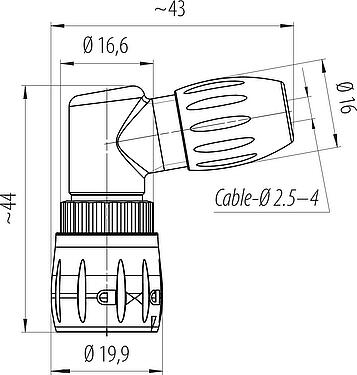

Bayonet Male angled connector, Contacts: 8, 2.5-4.0 mm, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
3D View(Click to activate)
This male angled connector with bayonet locking system and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded bayonet NCC male angled connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 175 V and the rated current of 2,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 99 0773 000 08 |
| Connector design | Male angled connector |
| Version | Connector pin straight |
| Connector locking system | Bayonet |
| Termination | solder |
| Degree of protection | IP67 |
| Cross-sectional area | 0.25 mm² / AWG 24 |
| Cable outlet | 2.5-4.0 mm |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 5000 Mating cycles |
| Weight (g) | 13.09 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 175 V |
| Rated impulse voltage | 1750 V |
| Rated current | 2.0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PA (UL94 HB) |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 9607ab5d-63b0-4e32-935d-905d4a4e0146 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-02 |
| ETIM 9.0 | EC002635 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
