Name: Bayonet NCC
Brand: binder
SKU: 09 0774 000 08

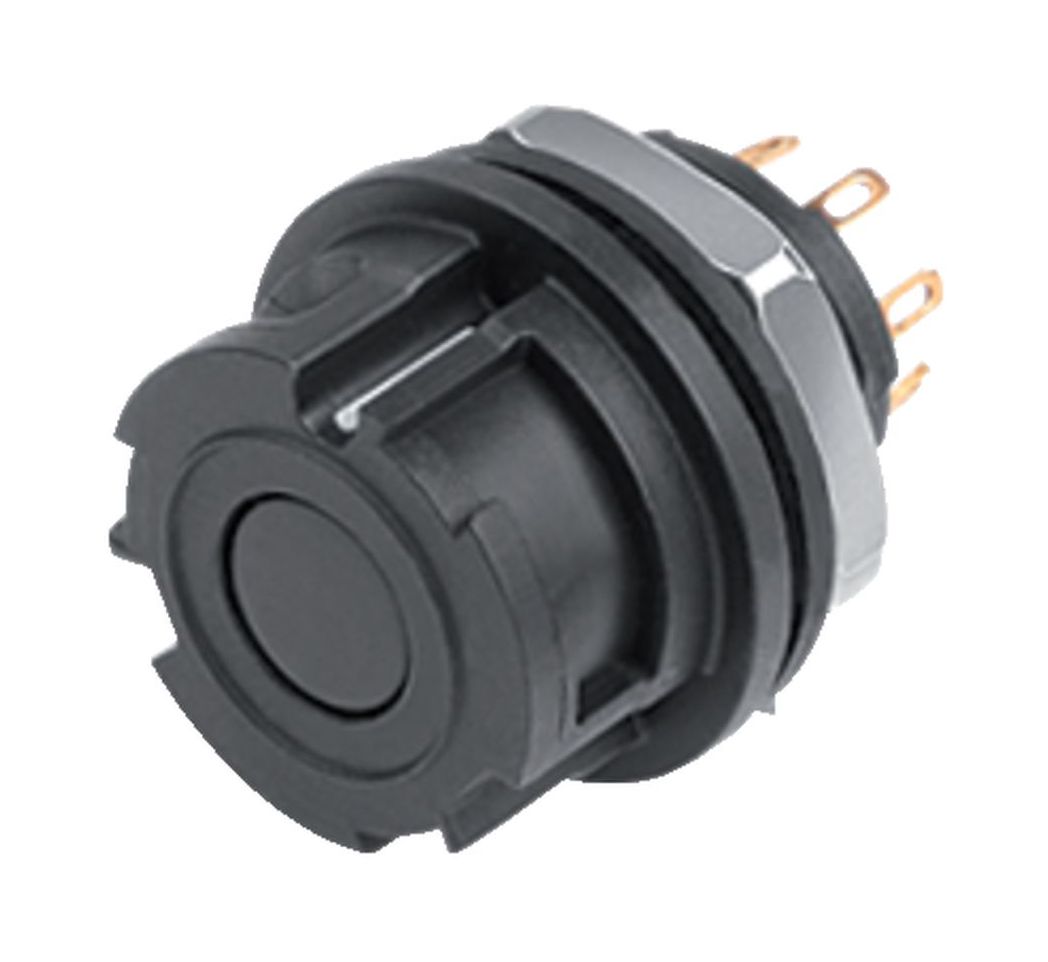

Illustration 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — Illustration

3D View 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — 3D View

Component part drawing 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — Component part drawing

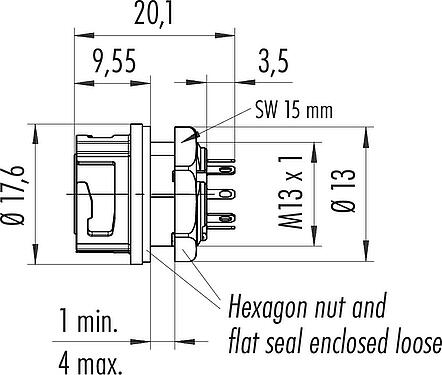

Scale drawing 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — Scale drawing

Assembly instructions / Panel cut-out 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 0774 000 08 - Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 — Contact arrangement (Plug-in side)

This female panel mount connector with bayonet locking system and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded bayonet NCC female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 175 V and the rated current of 2,0 A it is perfectly tuned for its field of application.

Moreless

Part no.	09 0774 000 08
Connector design	Female panel mount connector
Version	Connector socket straight
Connector locking system	Bayonet
Termination	solder
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 5000 Mating cycles
Weight (g)	4.39
Customs tariff number	85369010
Country of Origin	DE

Moreless

Rated voltage	175 V
Rated impulse voltage	1750 V
Rated current	2.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	2
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Moreless

Housing material	PA
Contact body material	PA (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	e6b864af-05fd-4ac8-93ae-6dc3f2dad904

Moreless

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569
