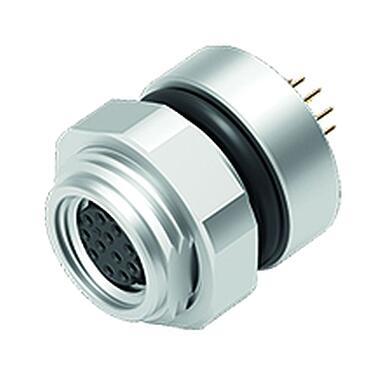

Part no.: 86 6518 1100 00012
M8 Female panel mount connector, Contacts: 12, unshielded, THT, IP67, UL, screwable from the front
M8, series 718, Automation Technology - Sensors and Actuators

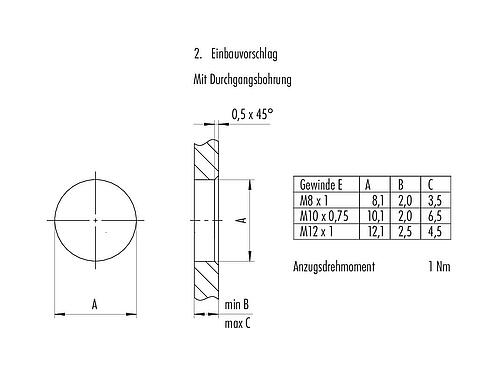

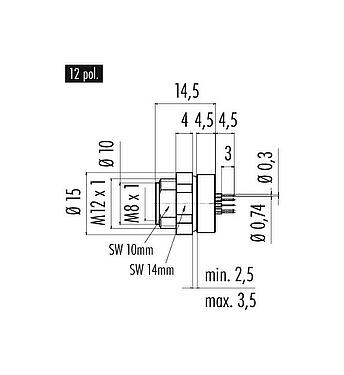

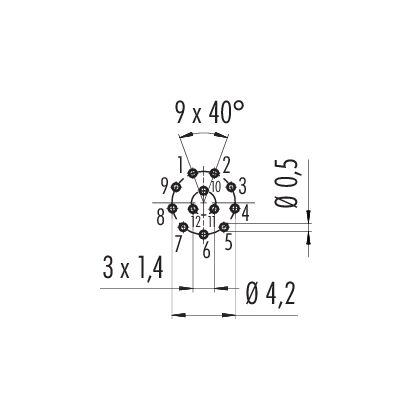

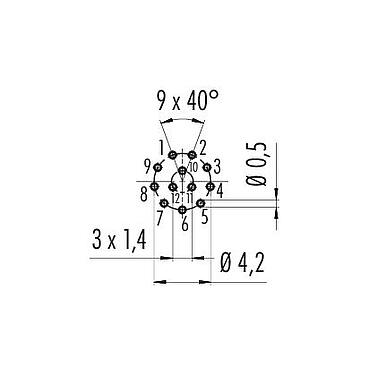

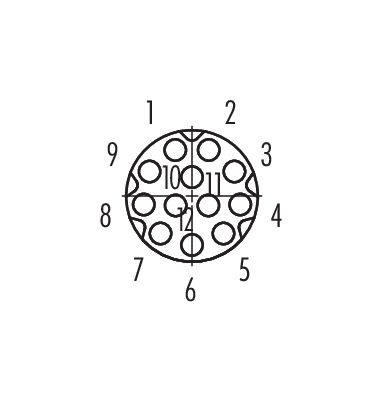

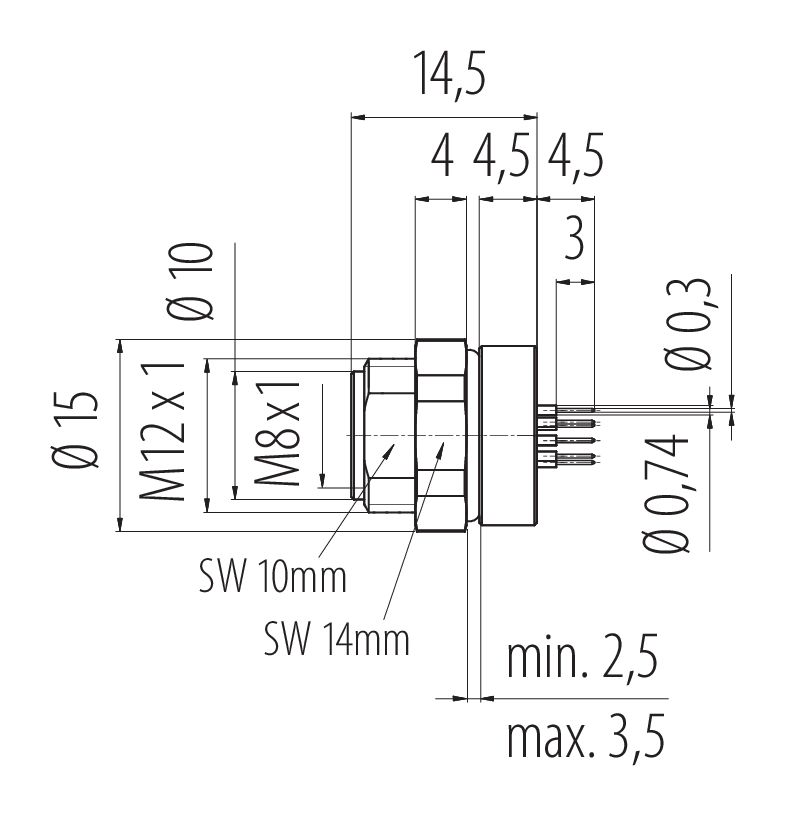

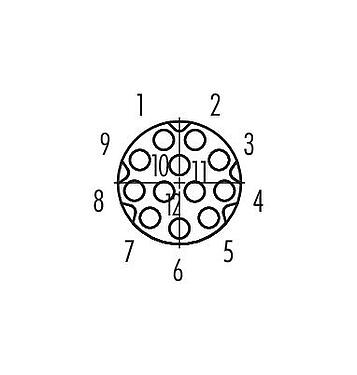

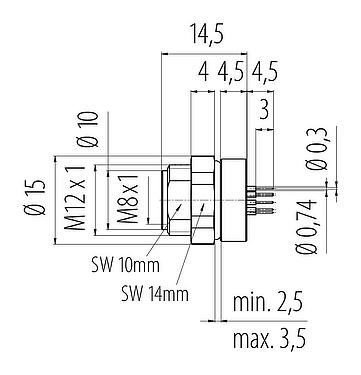

3D View(Click to activate)
This female panel mount connector with screw locking and a pin count of 12 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. Due to the qualified rated voltage of 32 V and the rated current of 1,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless| Part no. | 86 6518 1100 00012 |
| Connector design | Female panel mount connector |
| Type standard | DIN EN 61076-2-104 |
| Connector locking system | screw |
| Termination | THT |
| Degree of protection |
IP67 IP69K |
| Mechanical operation | > 100 Mating cycles |
| Additional information | screwable from the front |
| Weight (g) | 11.53 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 32 V |
| Rated impulse voltage | 500 V |
| Rated current | 1.0 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Insulating material group | I |
| EMC compliance | unshielded |
| Voltage | 500 V DC |
Material
Moreless| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PUR black |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 329f8ca5-6725-4f71-8225-6ec490e2e2ce |
Authorization/approvals
Moreless| Approvals | UL |
Classifications
Moreless| ETIM 9.0 | EC003569 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 40 cNm). A torque wrench for SW9 is available as an accessory (order no. 07 0085 000).
