M12-A
M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL

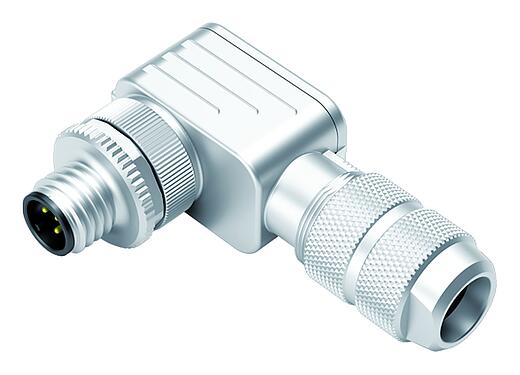

Illustration 99 1439 824 05 - M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL — Illustration

3D View 99 1439 824 05 - M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL — 3D View

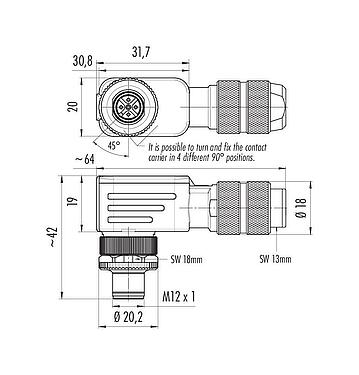

Scale drawing 99 1439 824 05 - M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL — Scale drawing

Assembly instructions 99 1439 824 05 - M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL — Assembly instructions

Contact arrangement (Plug-in side) 99 1439 824 05 - M12 Male angled connector, Contacts: 5, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL — Contact arrangement (Plug-in side)

Part no.	99 1439 824 05
Connector design	Male angled connector
Type standard	DIN EN 61076-2-101
Version	Connector pin angled
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Cross-sectional area	max. 0.75 mm² / AWG 18
Cable outlet	5.0-8.0 mm
Twistability	90° (4 coding options)
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	68.07
Customs tariff number	85369010
Country of Origin	HU

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4 A (3 A UL)
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Iris type spring

Housing material	Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
Locking material	Zinc die-cast nickel-plated
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	4a95f0ce-3b6c-4f00-a043-84039a24f3a4

Approvals	UL

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Low Voltage Directive	2014/35/EU (EN 60204-1:2018;EN 60529:1991)

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
