Part no.: 76 0932 0111 00008-0200

M12 Square female panel mount connector, Contacts: 8, unshielded, single wires, IP40, UL, Square

M12-A, series 763, Automation Technology - Sensors and Actuators

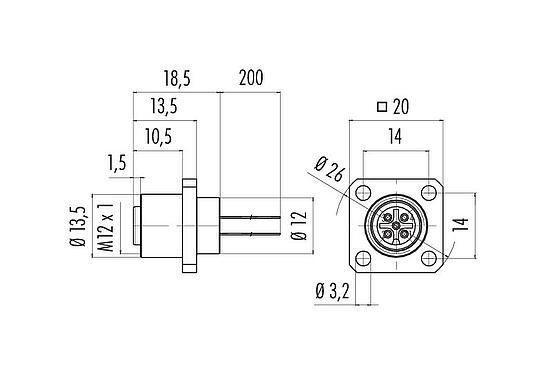

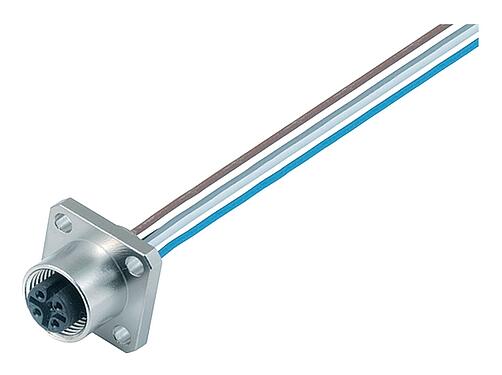

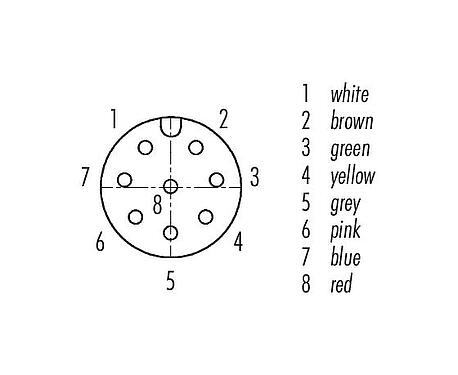

Available numbers of contacts
Compare product
Downloads
The square female panel mount connector with screw locking and a pin count of 8 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-A coded Vierkant-female panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 2 A (UL 1,5 A) it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.
General features
Moreless
Part no. 76 0932 0111 00008-0200
Alternative part no.: 09 3488 00 08
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Square female panel mount connector
Type standard DIN EN 61076-2-101
Wire length 0.2 m (Standard 0.2m. Other lengths are available on request).
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP40
IP67 with seal, see accessories
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 20.08
Customs tariff number 85369010
Rated voltage 30 V
Rated voltage UL 2458
Rated impulse voltage 800 V
Rated current 2 A (UL 1.5 A)
Insulation resistance > 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Housing material CuZn (Brass nickel plated)
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number b731d550-d609-4a9b-bcca-74e77a97fa01
eCl@ss 11.1 27-44-01-03
ETIM 9.0 EC003570
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
  8. The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
