Name: M12-A
Brand: binder
SKU: 70 3481 287 08

Illustration 70 3481 287 08 - M12 Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m — Illustration

3D View 70 3481 287 08 - M12 Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m — 3D View

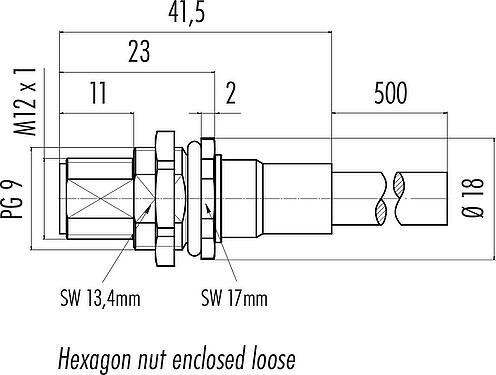

Scale drawing 70 3481 287 08 - M12 Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m — Scale drawing

Assembly instructions / Panel cut-out 70 3481 287 08 - M12 Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 70 3481 287 08 - M12 Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m — Contact arrangement (Plug-in side)

This male panel mount connector with screw locking and a pin count of 8 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/70 °C is this shielded M12-A coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 30 V and the rated current of 2,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

Moreless

Part no.	70 3481 287 08
Connector design	Male panel mount connector
Type standard	DIN EN 61076-2-101
Cable length	0.5 m (Other lengths are available on request).
Version	Connector pin straight
Connector locking system	screw
Termination	with cable assembled
Degree of protection	IP68
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	43.90
Customs tariff number	85444290
Country of Origin	HU

Moreless

Rated voltage	30 V
Rated impulse voltage	800 V
Rated current	2.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Insulating material group	III
EMC compliance	shielded
Shield connection	Shield on the housing

Moreless

Housing material	Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	d9ef2532-3c4b-4083-8eec-57e7a6400cd5

Moreless

Structure of the cable
Cable diameter	6.0 mm
Cross section	8 x 0.25 mm²
Sheath material	PUR
Cable color	black
Electrical properties
Operating voltage	300 V
Conductor resistance	79 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	min. 5 x Ø
Bending radius, moving cable	min. 10 x Ø
Bending cycles	> 2 million
Permitted acceleration	5 m/s²
Travel distance, horizontal	at 5 m/s² -> 5 m
Travel distance, vertical	at 5 m/s² -> 2 m
Travel speed	at 5 m horizontal path -> 200 m/min
Thermal properties
Temperature range cable in move from/to	-25 °C / 90 °C
Temperature range cable fixed from/to	-50 °C / 90 °C
Other features
Halogen free	yes

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
The user must take appropriate safety precautions to ensure that the connector cannot be accidentally disconnected. In addition, the user must ensure that the cable is suitably secured.
