  4. M8 Male panel mount connector, Contacts: 4, shieldable, THT, IP67
Part no.: 86 6321 1120 00404

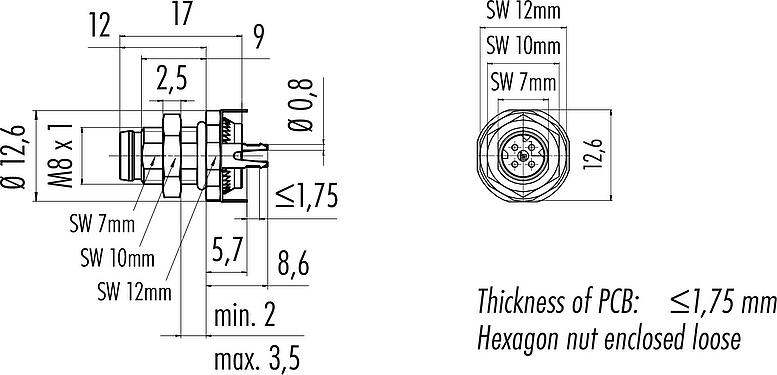

M8 Male panel mount connector, Contacts: 4, shieldable, THT, IP67

M8-D, series 818, Automation Technology - Data Transmission
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M8-D coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V DC and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-114.
General features
Moreless
Part no. 86 6321 1120 00404
Connector design Male panel mount connector
Type standard DIN EN 61076-2-114
Version Connector pin straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 4.43
Customs tariff number 85369010
Country of Origin DE
Rated voltage 63 V DC
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance > 108 Ω
Pollution degree 3
Insulating material group III
EMC compliance shieldable
Shield connection Shielding plate
Housing material Zinc die-cast nickel-plated
Contact body material PA yellow/green
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 92853bd5-c5c8-4a57-bcd9-a88a03c4d532
Norms and regulations DIN EN 61373
DIN EN 45545-2 (nicht klassifizierte brennbare Masse <10g)
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
