Part no.: 99 3725 810 04
M12 Male cable connector, Contacts: 4, 6.0-8.0 mm, shieldable, wire clamp, IP67, M12x1.0
M12-D, series 825, Automation Technology - Data Transmission
This male cable connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shieldable M12-D coded male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

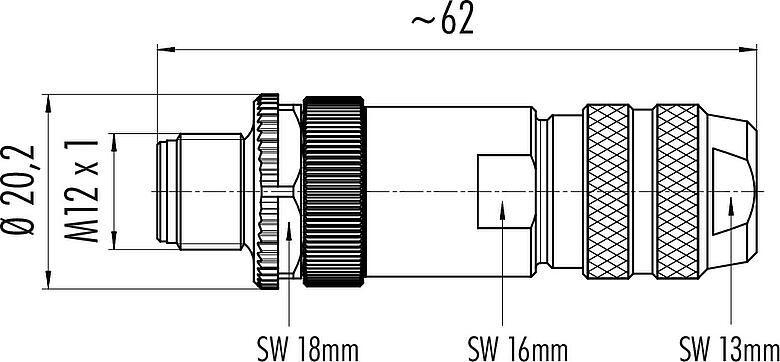

General features
MorelessPart no. | 99 3725 810 04 |
Connector design | Male cable connector |
Type standard | DIN EN 61076-2-101 |
Version | Connector pin straight |
Connector locking system | screw |
Termination | wire clamp |
Degree of protection | IP67 |
Cross-sectional area | 0.14-0.50 mm² |
Cable outlet | 6.0-8.0 mm |
Temperature range from/to | -25 °C / 85 °C |
Mechanical operation | > 50 Mating cycles |
Weight (g) | 38.96 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 250 V |
Rated impulse voltage | 2500 V |
Rated current | 4.0 A |
Insulation resistance | > 108 Ω |
Pollution degree | 3 |
Transmission rate | CAT 5 |
Overvoltage category | II |
Insulating material group | III |
EMC compliance | shieldable |
Shield connection | Iris type spring |
Material
MorelessHousing material | PA |
Contact body material | PBT |
Contact material | CuSn (bronze) |
Contact plating | Au (gold) |
Locking material | CuZn (brass) |
REACH SVHC |
CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead) |
SCIP number | 815c2199-a9ec-4f69-89f3-000746d14252 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-02 |
ETIM 9.0 | EC002635 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
