Name: M12-B
Brand: binder
SKU: 70 4434 247 04

Illustration 70 4434 247 04 - M12 Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, violet, 1 x 2 x 0.25 mm², front fastened, 0.5 m — Illustration

3D View 70 4434 247 04 - M12 Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, violet, 1 x 2 x 0.25 mm², front fastened, 0.5 m — 3D View

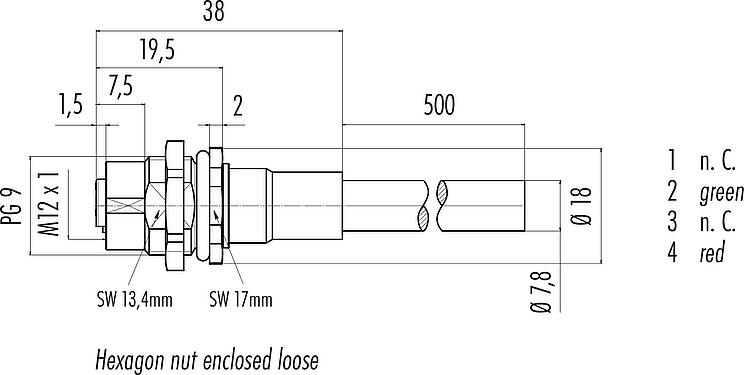

Scale drawing 70 4434 247 04 - M12 Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, violet, 1 x 2 x 0.25 mm², front fastened, 0.5 m — Scale drawing

Assembly instructions / Panel cut-out 70 4434 247 04 - M12 Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, violet, 1 x 2 x 0.25 mm², front fastened, 0.5 m — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 70 4434 247 04 - M12 Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, violet, 1 x 2 x 0.25 mm², front fastened, 0.5 m — Contact arrangement (Plug-in side)

This female panel mount connector with screw locking and a pin count of 2 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this shielded M12-B coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

Moreless

Part no.	70 4434 247 04
Connector design	Female panel mount connector
Type standard	DIN EN 61076-2-101
Cable length	0.5 m (Other lengths are available on request).
Version	Connector socket straight
Connector locking system	screw
Termination	with cable assembled
Degree of protection	IP68
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	47.97
Customs tariff number	85444290
Country of Origin	HU

Moreless

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	shielded
Shield connection	Shield on the housing

Moreless

Housing material	Zinc die-cast nickel-plated
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	663fa050-2d07-48d5-9912-a648610c3e2d

Moreless

eCl@ss 11.1	27-44-01-03
ETIM 9.0	EC002638

Moreless

Structure of the cable
Cable type	Profibus
Cable diameter	7.8 mm
Cross section	1 x 2 x 0.25 mm²
Sheath material	PUR
Single-lead insulation	PE foam
Single-lead structure	19 x 0.127 mm
Cable color	violet
Other features
Halogen free	yes

Report error on this page

General Disclaim Notice

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
