  2. Automation technology - Solenoid valve connectors
  3. Model A
  4. Male power connector, contacts angled inwards, Contacts: 2+PE, unshielded, solder, IP40 without seal, UL, ESTI+, VDE
Part no.: 43 1717 023 03

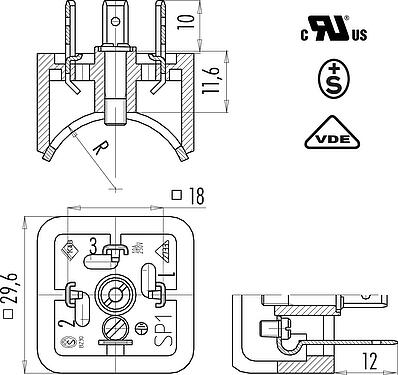

Male power connector, contacts angled inwards, Contacts: 2+PE, unshielded, solder, IP40 without seal, UL, ESTI+, VDE

Size A, series 210, Automation Technology - Solenoid Valve Connectors
Available numbers of contacts
Compare product
Downloads
This male power connector with central bolt locking system and a pin count of 2+PE is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/125 °C is this unshielded type A device plug, contacts angled inwards designed for both severe cold and severe heat and has UL, ESTI+, VDE approval. Due to the qualified rated voltage of 250 V and the rated current of 10,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 175301-803.
General features
Moreless
Part no. 43 1717 023 03
Connector design Male power connector, contacts angled inwards
Type standard DIN EN 175301-803
Version Connector pin straight
Connector locking system Central bolt
Termination solder
Degree of protection IP40 without seal
IP65 with seal, see accessories
Cross-sectional area 1.00 mm² / AWG 17
Temperature range from/to -40 °C / 125 °C
Mechanical operation > 50 Mating cycles
Radius 22 mm
Weight (g) 10.28
Customs tariff number 85369010
Country of Origin HU
Rated voltage 250 V
Rated impulse voltage 4000 V
Rated current 10.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Contact body material PA (UL94 HB)
Contact material CuZn (brass)
Contact plating Sn (tin)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 0a3e4583-e955-4045-960a-102725f987db
Approvals UL, ESTI+, VDE
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
