Part no.: 02 0007 000

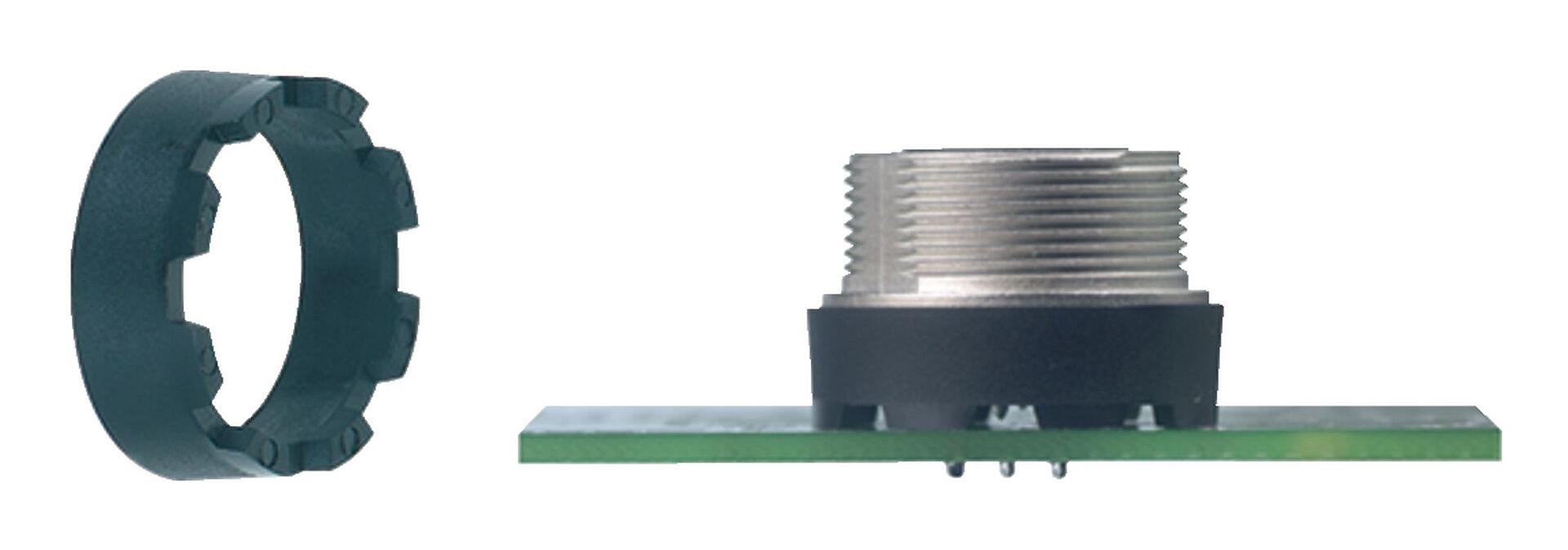

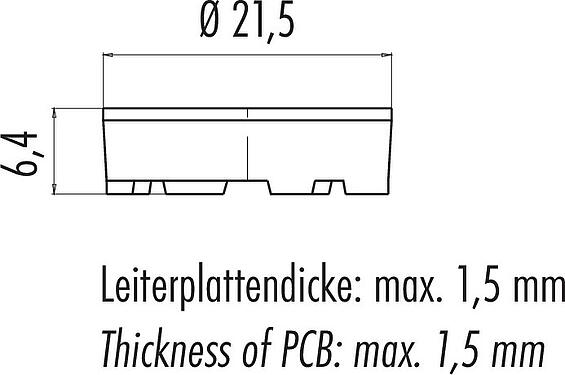

M16 IP40 / M16 IP67 - Spacer sleeve for flange connectors, dip solder version, 2-19 poles; Series 423/425/581/680/682/723

series 423/425/581/680/682/723, Accessories

Material	Pocan B 4235 schwarz - PBT - GF30

eCl@ss 11.1	27-44-02-08
ETIM 9.0	EC002314

General Disclaim Notice

The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
