  4. Snap-In - Protective cap for flange plug; Series 720
Part no.: 08 2559 000 000

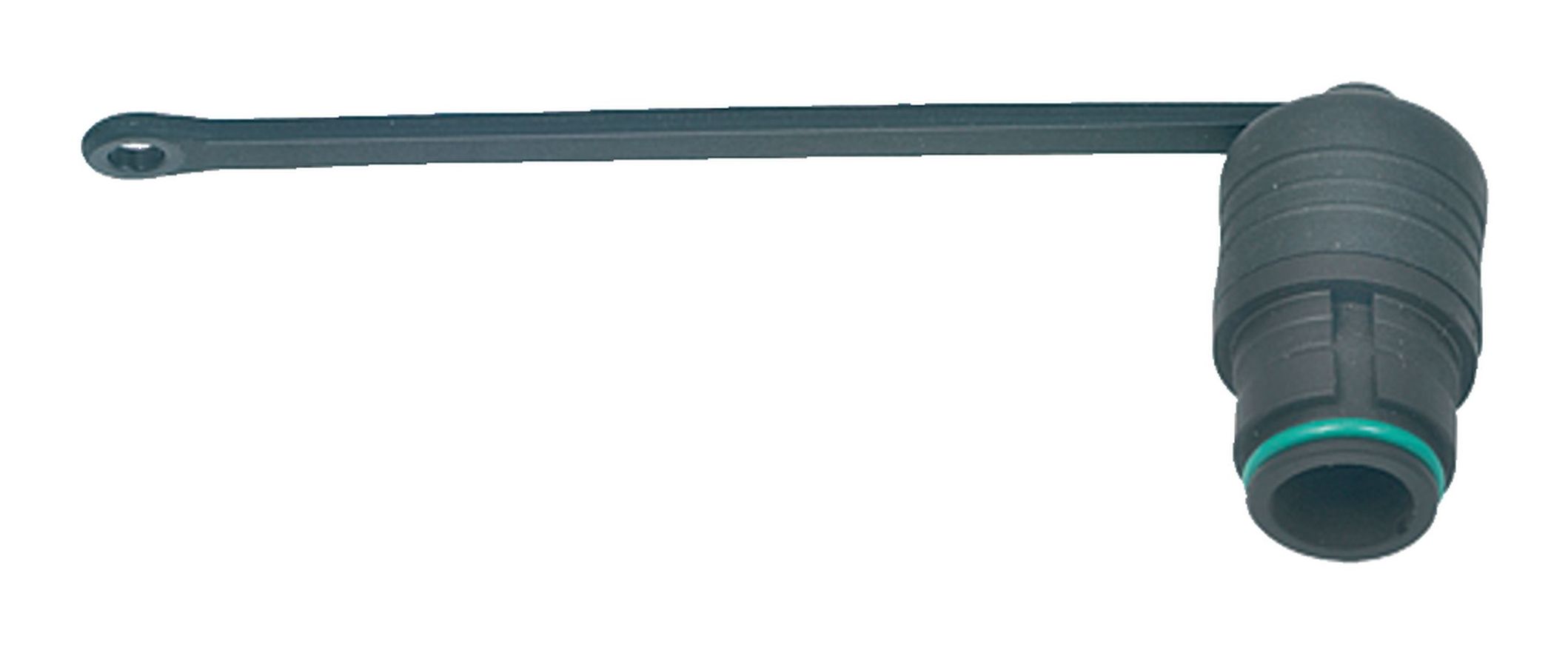

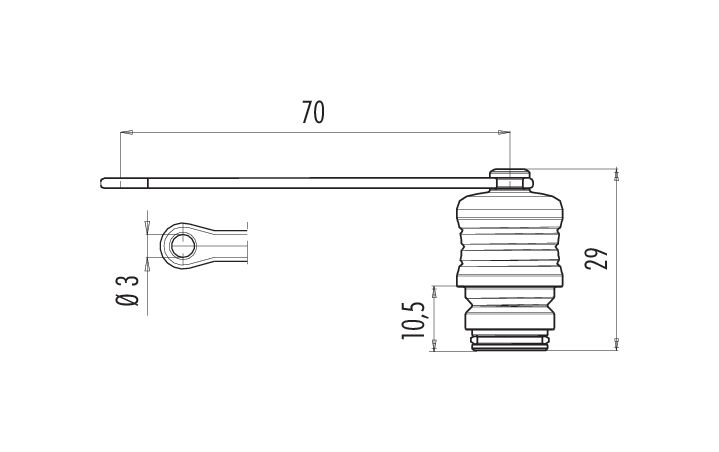

Snap-In - Protective cap for flange plug; Series 720

series 720, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 2559 000 000
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for male panel mount connector
Weight (g) 4.18
Customs tariff number 85366990
Country of Origin DE
Contact body material black
Material protective cap PA
Strap material PUR
Material seal FPM/FKM
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
General Disclaim Notice
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Accessories--_720_Z_S2-grad
08 2559 000 000
