Part no.: 08 1080 000 000

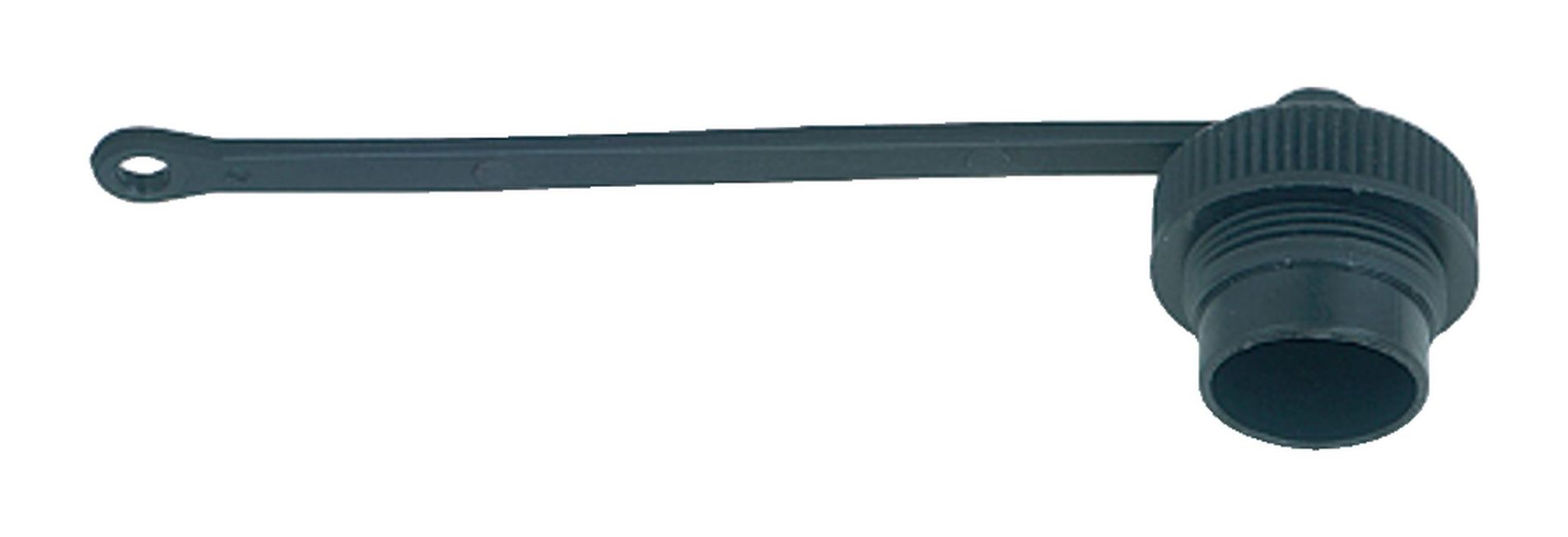

M16 IP67 - Protection cap for flange socket; Series 423/425/723

series 423/425/723, Accessories
Compare product
Downloads
General features
Moreless
Part no. 08 1080 000 000
Degree of protection IP67
Temperature range -40 °C/+85 °C
Additional information for female panel mount connector
Weight (g) 3.50
Customs tariff number 85366990
Country of Origin DE
Contact body material black
Material protective cap PBT
Strap material PUR
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002314
General Disclaim Notice
  1. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  2. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
Accessories--_723_Z_SK3
08 1080 000 000
