General features
Moreless| Part no. | 65 0796 085 10 |

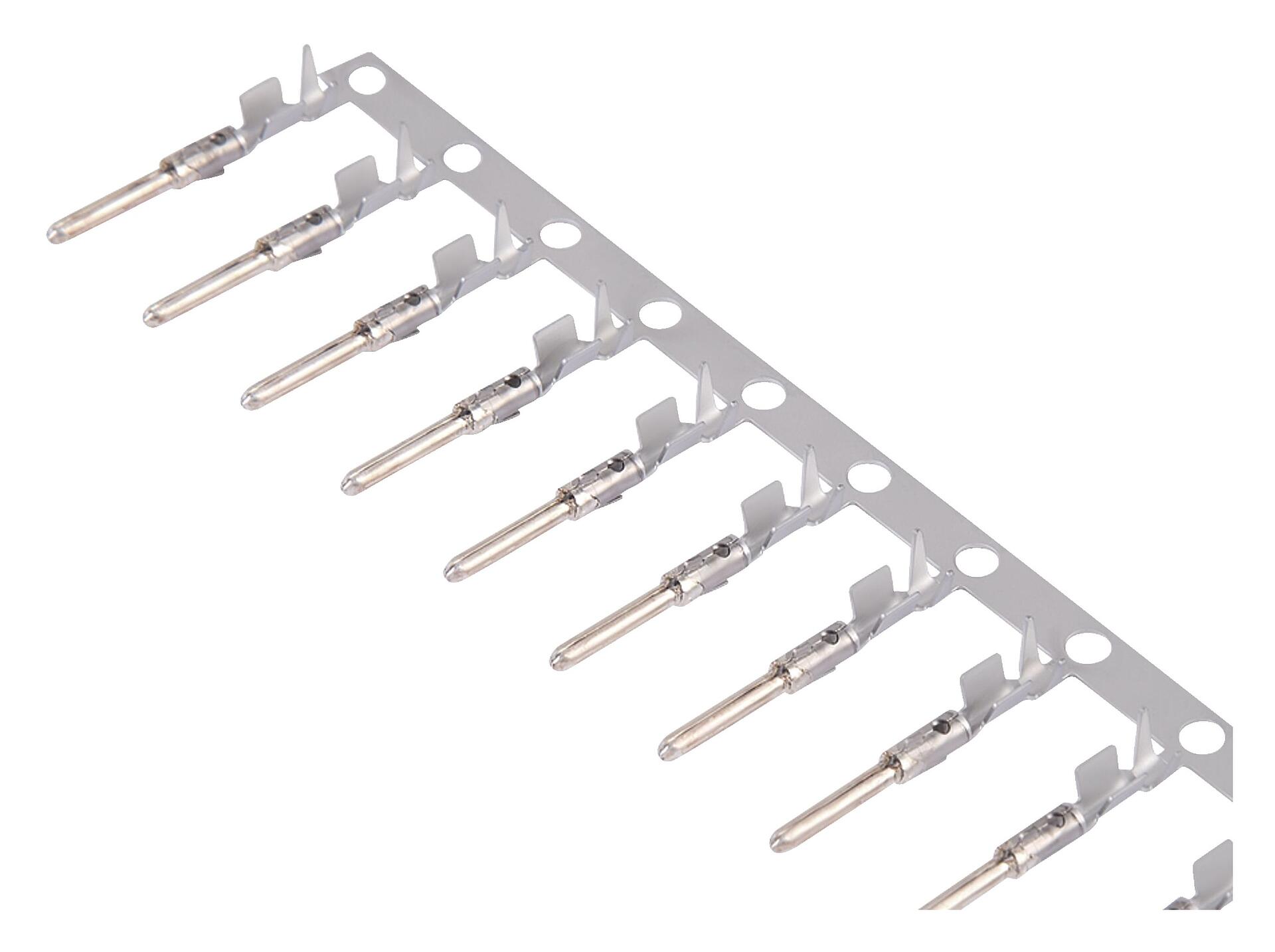

| Version | Pin contact |
| Cross-sectional area | 0.75-1.00 mm² |
| Packaging type | Strip (10000 pcs.) |
| Crimp dimensions (guide value) | 0.75 mm²: 1.2-1.33 mm - 1.00 mm²: 1.3-1.45 mm |
| Crimp pullout force | 0.75 mm²: 90 N - 1.00 mm²: 110 N |
| Weight (g) | 4255.00 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Material
Moreless| Contact material | CuSn (bronze) |
| Contact plating | Ag (silver) |
| REACH SVHC |
None (No pollutants) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| eCl@ss 11.1 | 27-46-04-03 |
General Disclaim Notice
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
