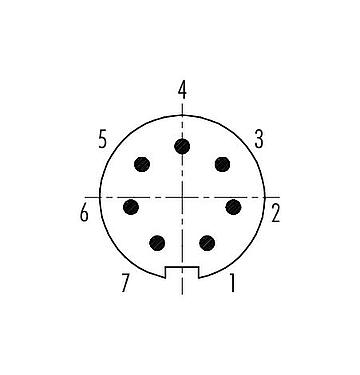

  4. Push Pull Male cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67
Part no.: 99 4925 00 07

Push Pull Male cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67

Push-Pull, series 430, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
This male cable connector mit Push-Pull Verriegelung and a pin count of 7 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/85 °C is this shieldable Push-Pull male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 1,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 99 4925 00 07
Connector design Male cable connector
Version Connector pin straight
Connector locking system Push-Pull
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.14 mm² / AWG 26
Cable outlet 3.5-5.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 8.76
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 1.0 A
Pollution degree 2
Overvoltage category I
Insulating material group II
EMC compliance shieldable
Shield connection Shield clamping
Housing material PA
Contact body material PUR/PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number e3c75ec8-3491-4a57-8b7a-21301891141a
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
