  4. RD24 Male cable connector, Contacts: 3+PE, 6.0-9.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 9
Part no.: 99 4221 00 04

RD24 Male cable connector, Contacts: 3+PE, 6.0-9.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, PG 9

RD24, series 693, Power Connectors
Available numbers of contacts
Compare product
Downloads
This male cable connector with screw locking and a pin count of 3+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/100 °C is this unshielded RD24 male cable connector designed for both severe cold and severe heat and has UL, ESTI+, VDE approval. Due to the qualified rated voltage of 400 V (600 V UL) and the rated current of 16 A (12 A UL) it is perfectly tuned for its field of application.

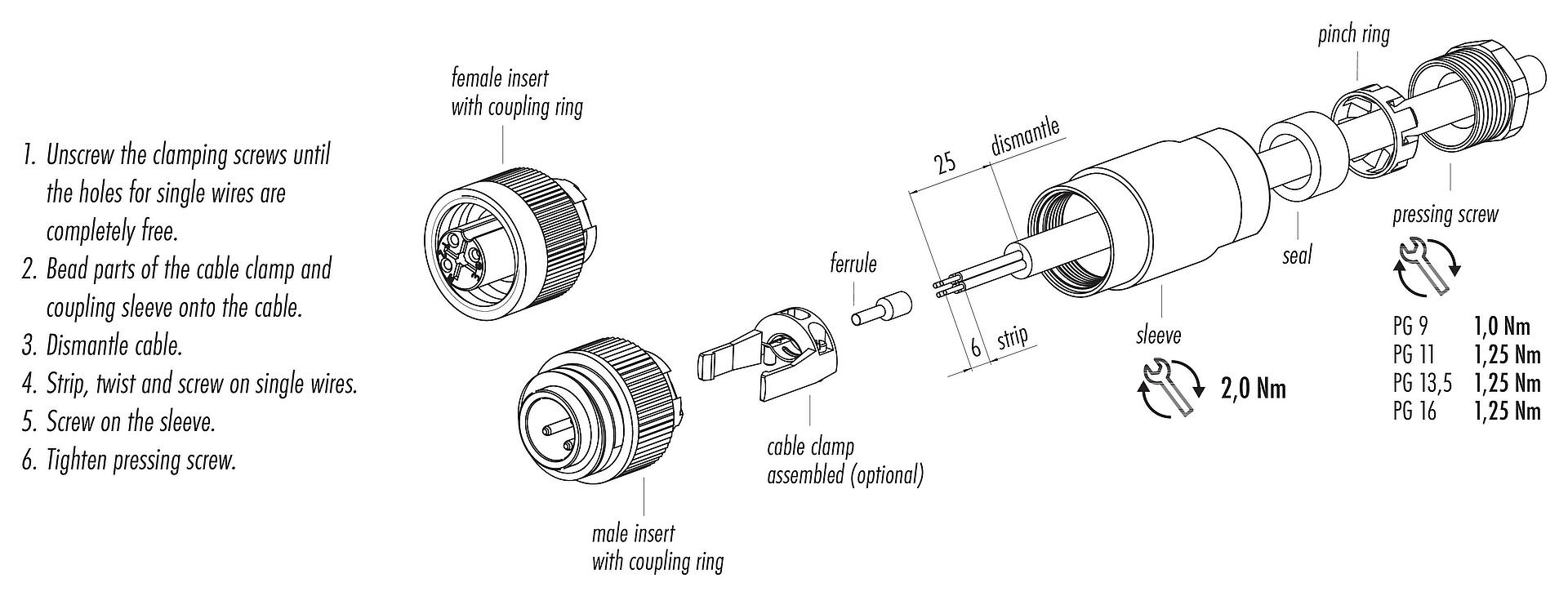

General features
Moreless
Part no. 99 4221 00 04
Connector design Male cable connector
Version Connector pin straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
IP65 with cable diameter 6-7 mm
Cross-sectional area max. 2.50 mm² / AWG 14
Cable outlet 6.0-9.0 mm
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Weight (g) 35.70
Customs tariff number 85369010
Country of Origin DE
Rated voltage 400 V (600 V UL)
Rated voltage UL 11768
Rated impulse voltage 6000 V
Rated current 16 A (12 A UL)
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 64f67148-d27e-482c-8914-2c5e58291356
Approvals UL, ESTI+, VDE
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
