  4. M8 Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, M8x1.0
Part no.: 99 3368 600 04

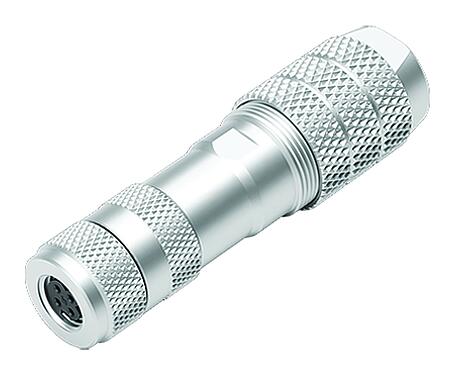

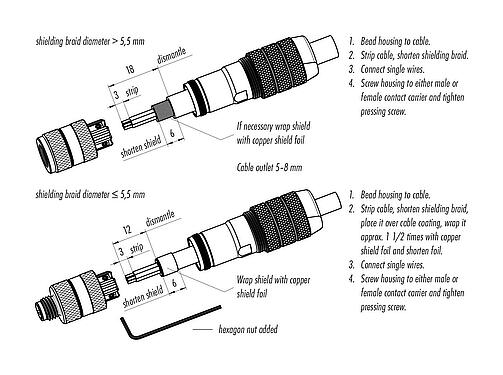

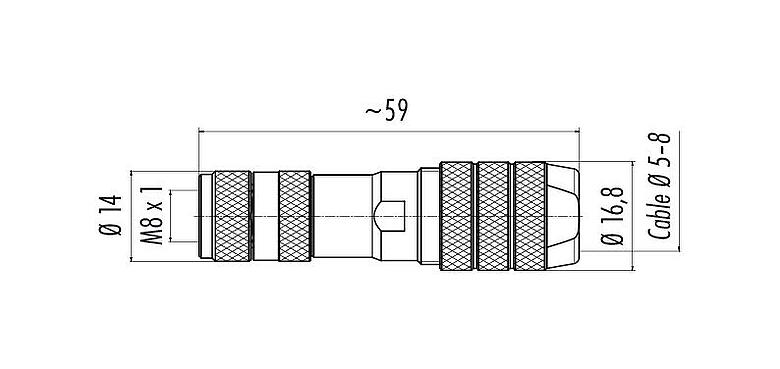

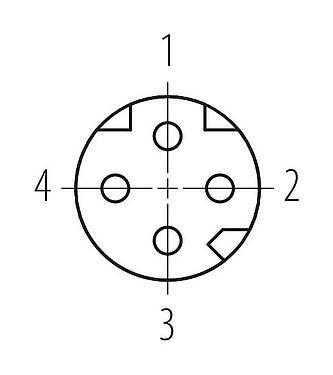

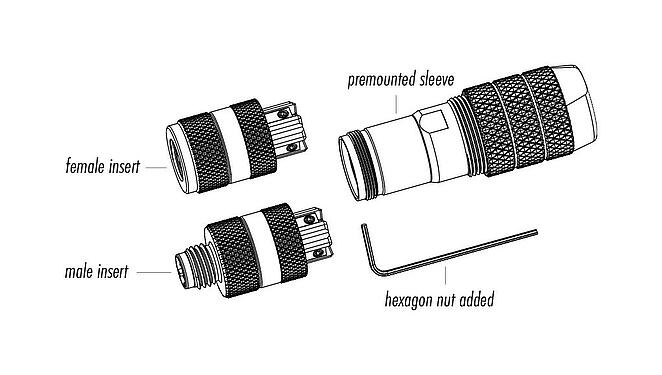

M8 Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, M8x1.0

M8-D, series 818, Automation Technology - Data Transmission
Compare product
Downloads
This female cable connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shieldable M8-D coded female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-114.
General features
Moreless
Part no. 99 3368 600 04
Connector design Female cable connector
Type standard DIN EN 61076-2-114
Version Connector socket straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area 0.14-0.50 mm²
Cable outlet 5.0-8.0 mm
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 34.79
Customs tariff number 85444290
Country of Origin DE
Rated voltage 63 V
Rated impulse voltage 1500 V
Rated current 4.0 A
Insulation resistance ≥ 108 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Iris type spring
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 83ec6250-c343-47a6-90c1-750075a0f511
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 40 cNm).
